• Ampeg B5r 500w/2ch Bass Head

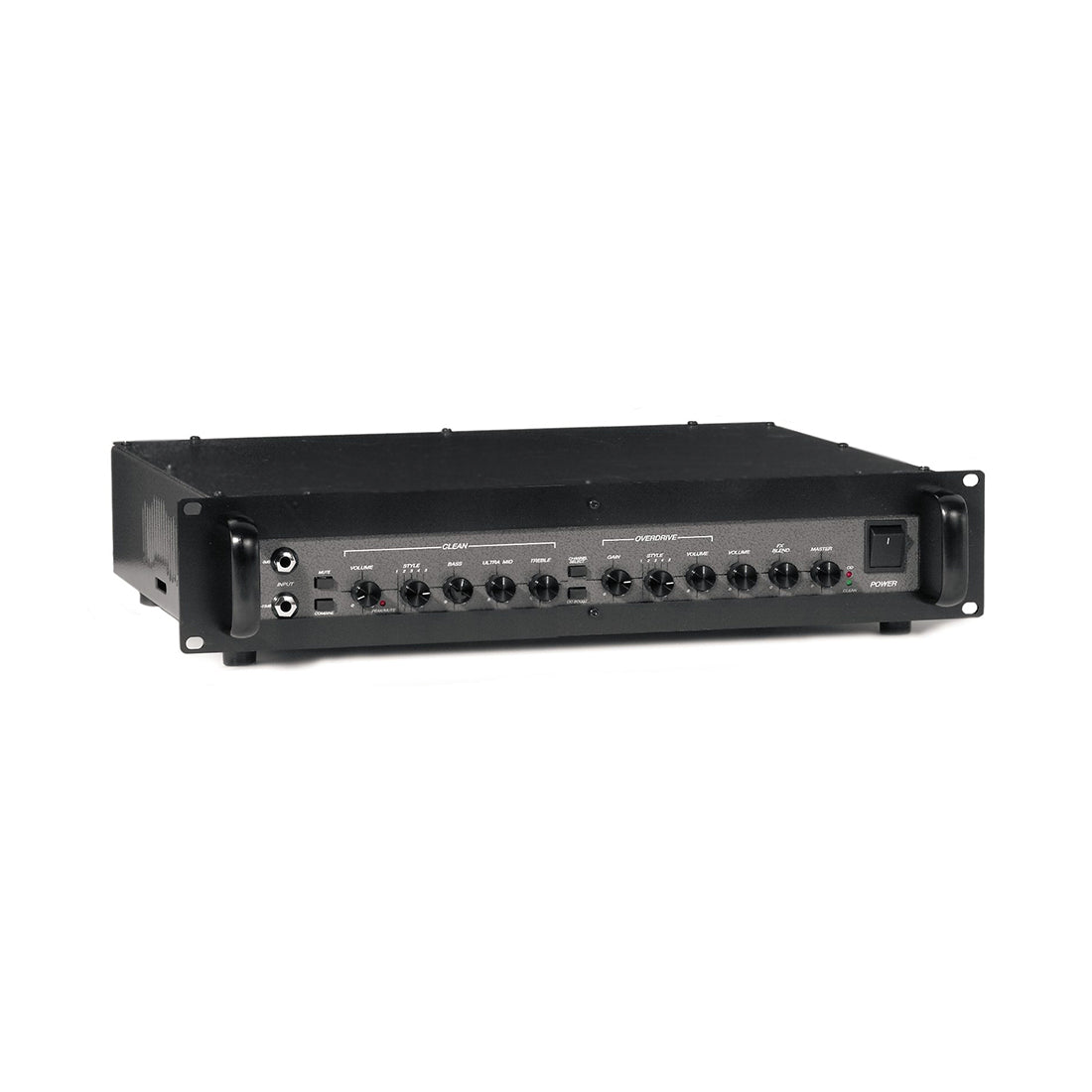

Ampeg B5r 500w/2ch Bass Head

Regular price $2,499.00
Ships From Warehouse (May be subject to backorder)

SKU: AMB5R

OUTPUT POWER RATING 675 Watts @ 2 Ohms (500 Watts Continuous)
  380 Watts @ 4 Ohms (310 Watts Continuous)
  220 Watts @ 8 Ohms (180 Watts Continuous)
TONE CONTROL RANGE
Bass 22dB range @ 50Hz
Ultra Mid 13dB range @250Hz
Treble 22dB range @ 8kHz
SIGNAL TO NOISE RATIO 75dB typical
FOOTSWITCH JACKS A: Channel Switch; B: Octave (Tip), Channel Combine (Ring)
POWER REQUIREMENTS
Domestic 120VAC, 60Hz, 545VA
Export 100-120VAC 50/60Hz, 545VA
  220-240VAC, 50/60Hz, 545VA
SIZE AND WEIGHT 19/17.4”W x 3.8”H (with feet) x 15.5”D; 32 lbs

In the world of high performance bass amps, Ampeg amplifiers stand alone. In true Ampeg tradition, the
B5R offers you more power, performance and flexibility than any other bass amplifier in its class. The outstanding features of your new amplifier, features which set it apart from the competition, are listed below.

  • TWO SEPARATE CHANNELS: Clean and Overdrive, with the ability to combine the
    two for a unique sound and added versatility
  • TWO 5-POSITION STYLE CONTROLS: Take your pick from five different tone variations to best suit your playing style
  • OCTAVE CIRCUIT: Adds another signal to the input signal, one octave lower than the
    original
  • FX BLEND: Varies the amount of external effects mixed into the signal
  • TUNER OUT JACK: Allows connection to an electronic tuner and provides an “always
    live” monitor feed even when the other outputs are muted
  • HEAVY-DUTY SPEAKER JACKS: A Speakon® jack is provided for a more reliable
    connection at higher outputs, as well as a pair of 1/4” jacks
  • TRANSFORMER BALANCED/UNBALANCED LINE OUTPUTS: Balanced XLR and
    1/4” line output jacks
  • EFFECTS LOOP: Connect your effects here for increased intensity and quieter operation
  • POWER AMP IN/PREAMP OUT: A separate preamp may be connected to the Power
    Amp In jack, and the Preamp Out jack may be connected to a slave amp, or use as a
    patch point for active devices such as compressors, EQs, etc.
  • FOOTSWITCH CONTROL: Use footswitches to control channel selection, the octave
    circuit, and the channel combine feature
  • CIRCUIT BREAKER PROTECTION: A heavy duty, resettable circuit breaker provides
    protection against fault conditions
  • BUILT-IN NOISE GATE: A preset internal noise gate helps keep the Overdrive channel quiet while no signal is present
