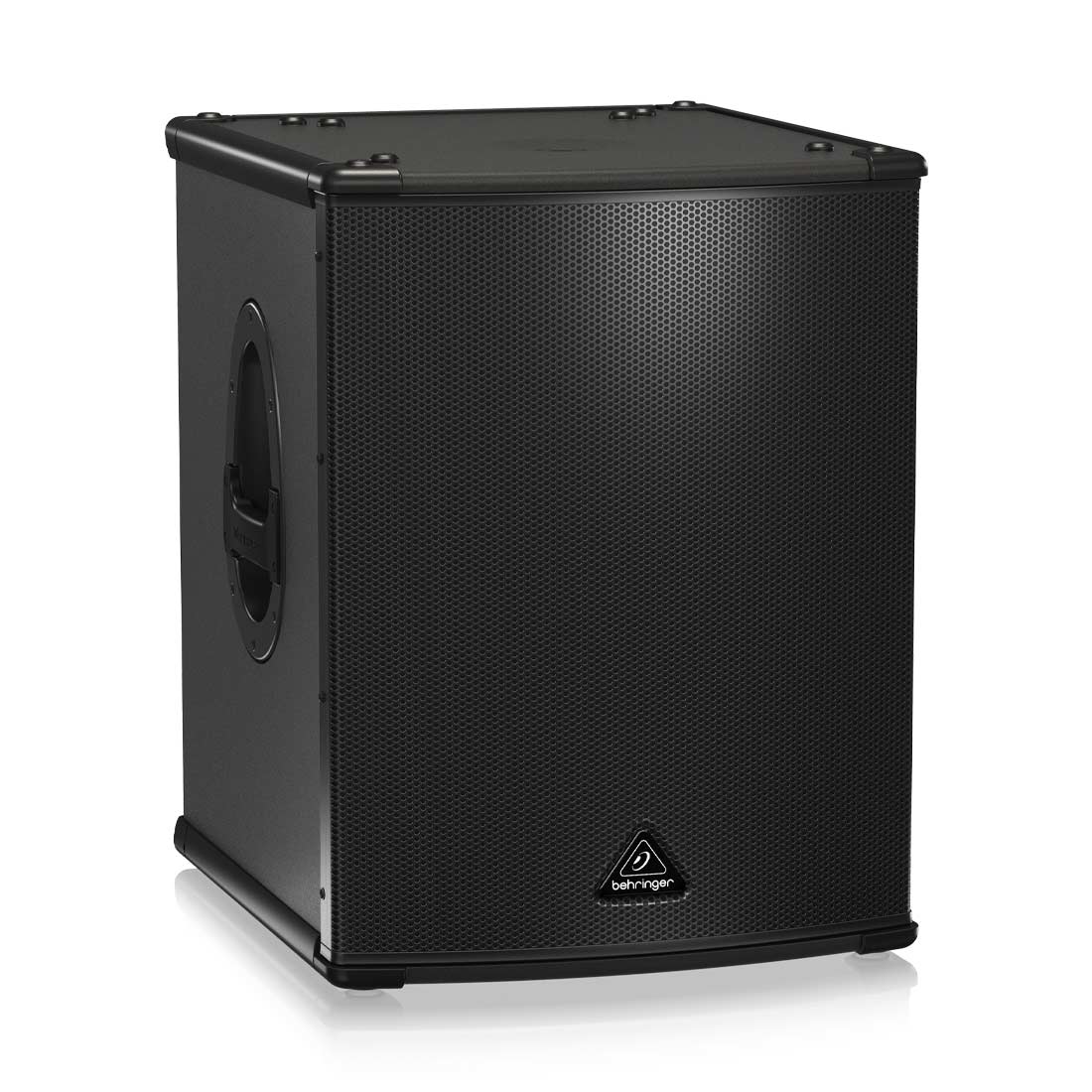

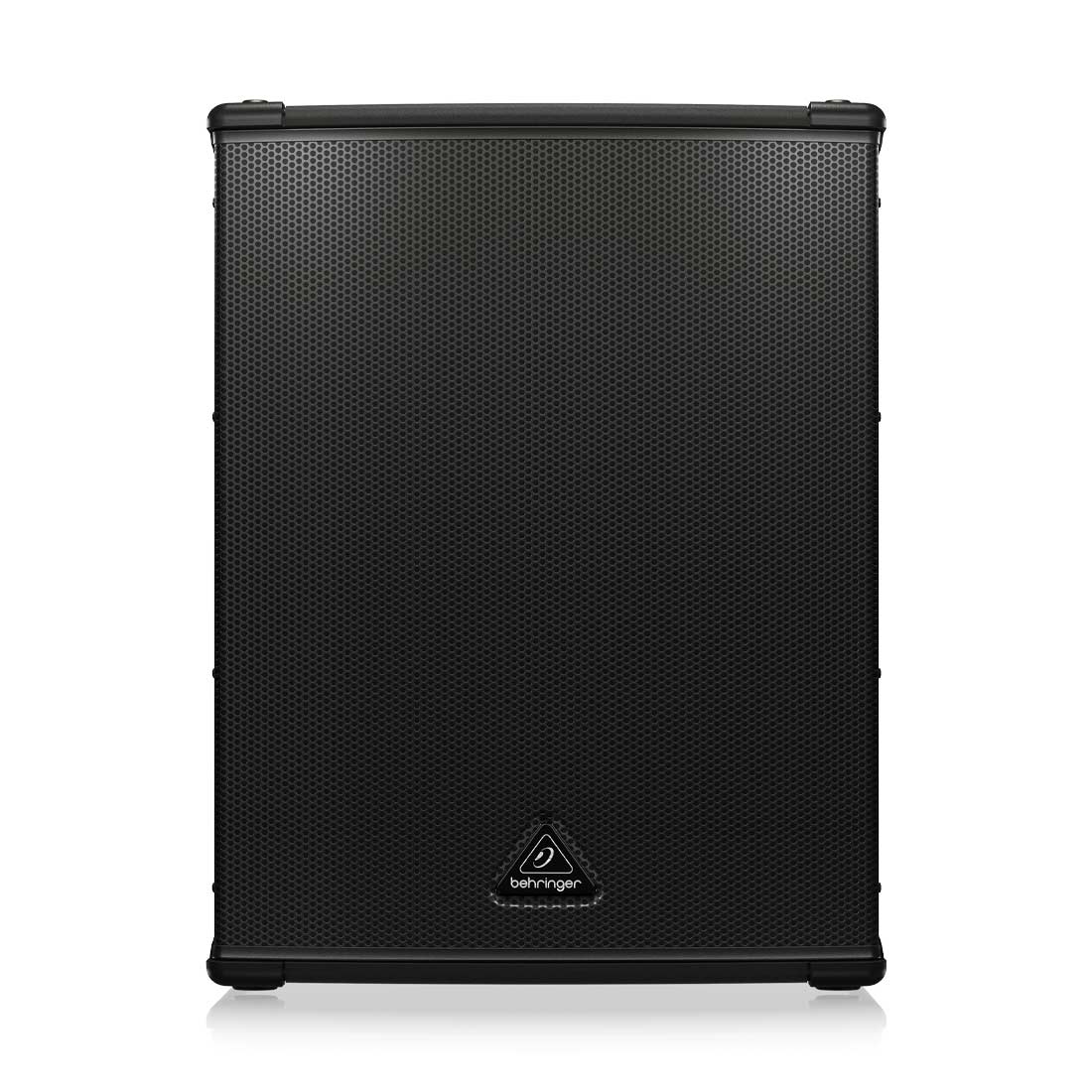

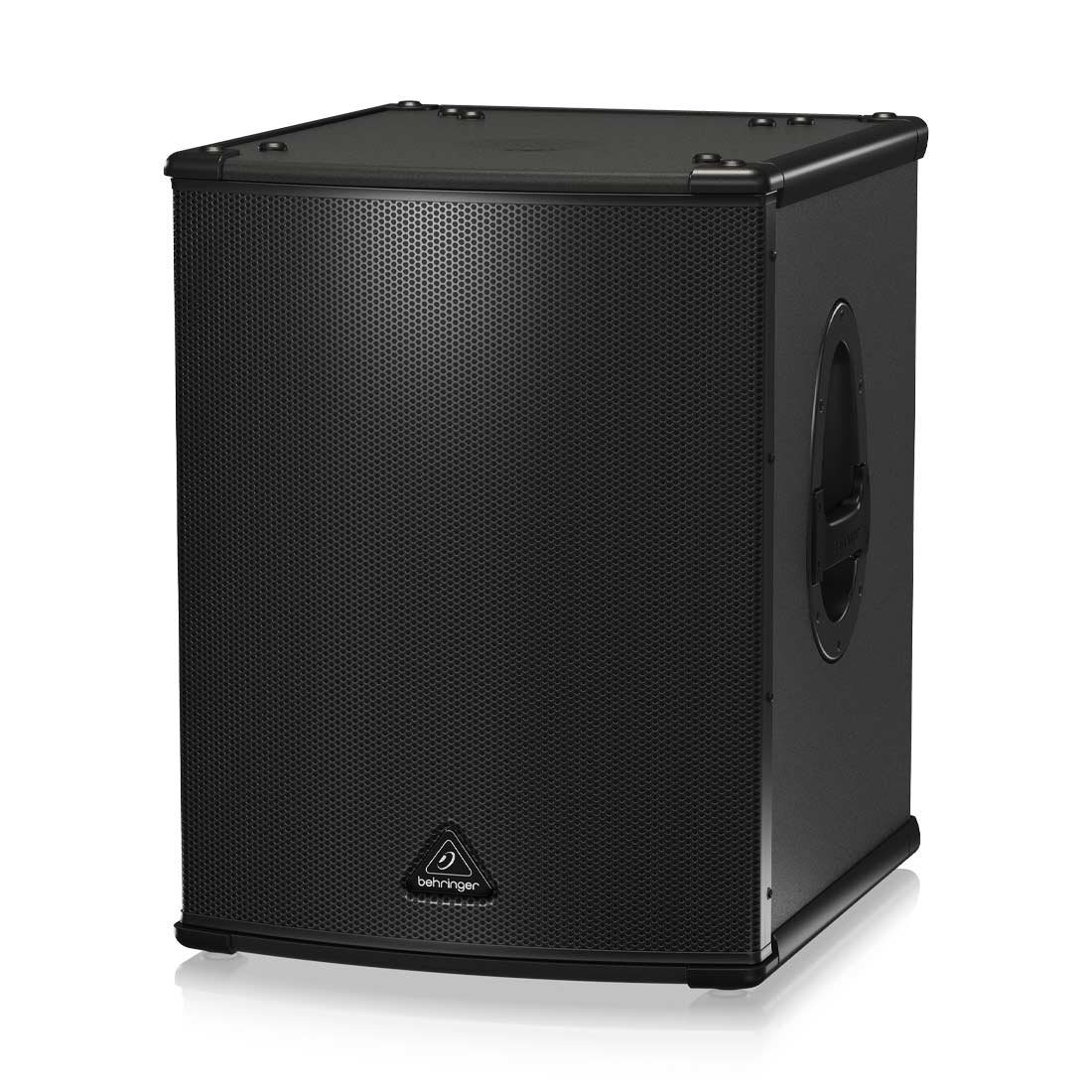

Behringer B1500XP Eurolive Active Subwoofer

• Features
• Overview
• Specification

• High-performance 3000-Watt powered subwoofer for PA applications
• World-famous, British-engineered 15" Turbosound speaker
• Extremely high sound pressure level and incredibly accurate bass
• Precise reproduction of ultra-low frequencies for "bulletproof" punch and impact
• State-of-the-art 3000-Watt Class-D amplifier with comprehensive over-excursion, thermal, RMS, and clip limit protection
• Built-in active stereo crossover provides high-pass filtered outputs for full-range loudspeakers
• Tunable and switchable Bass Boost plus Phase switch for ultimate low-frequency performance
• Variable high-cut control for perfect sound alignment
• Subwoofer Level control to adjust the balance between the subwoofer and the full-range speakers
• Power, Signal, and Clip LEDs for perfect monitoring
• Intelligent limiter for maximum sound performance and woofer protection
• Internal switch-mode power supply for noise-free audio, superior transient response, and very low power consumption
• Pole socket for mounting with commercial spacer poles
• Ergonomically shaped handles for easy transport
• Rugged steel grill for optimal speaker protection

Class-D - Massive Power, Perfect Sound

Thanks to our revolutionary Class-D amplifier technology, we are able to provide you with enormous power and incredible sonic performance in an easy-to-use, ultra-portable and lightweight package. Class-D amplification makes all the difference, offering the ultimate in energy efficiency and eliminating the need for heavy power supplies and massive heat sinks. This amazing technology makes it possible to design and build extremely powerful products that are significantly lighter in weight than their traditional counterparts, while using less energy and protecting the environment.

---

TURBOSOUND - The Sound Difference

A world-leading British designer and manufacturer of professional loudspeaker systems, Turbosound has been building cutting-edge speakers for more than 30 years, and won the venerable Queen’s Award for Innovation numerous times for their highly acclaimed loudspeaker designs. You will find Turbosound’s distinguished products not only touring with the best-known international artists, but also in countless major venues worldwide.

Behringer is proud to incorporate world-famous, custom-engineered Turbosound speakers and amplifier technology into select products for the ultimate in high-quality audio reproduction. The B1500XP features a truly-inspired 15" Turbosound speaker with an impressive 3000 Watts of power handling, enough to meet all your amplification needs. Find out more about Turbosound’s amazing legacy by visiting their extensive website.

---

Take Control

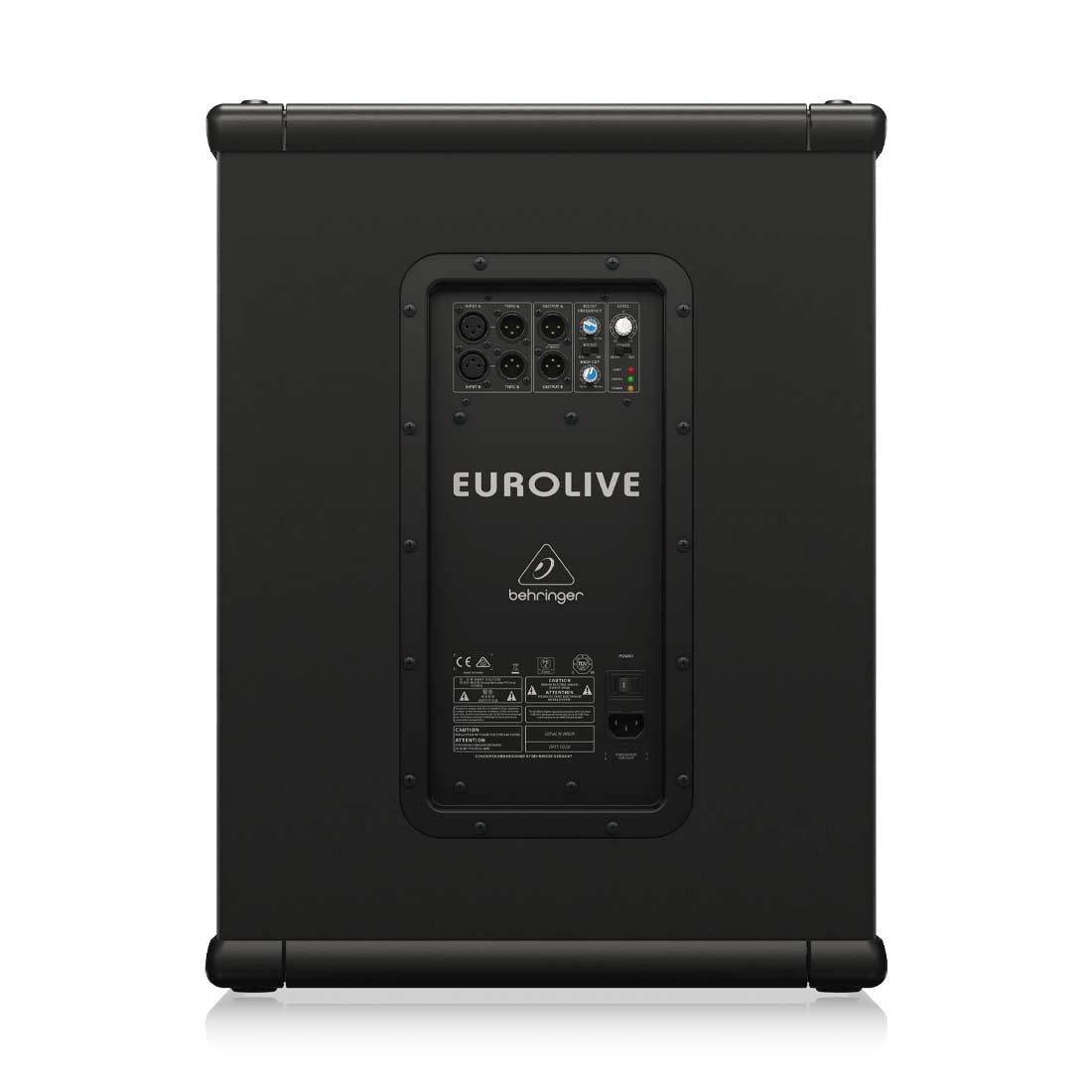

The B1500XP features balanced XLR inputs and outputs, as well as balanced XLR Thru jacks for connecting additional enclosures. A Boost Frequency knob targets a boost frequency between 45 Hz and 90 Hz. Flick the Boost switch to give your selected frequency a +10 dB boost. The B1500XP also has a High Cut dial that provides precision control over the upper-corner frequency of the subwoofer’s amplifier. The High Cut dial does not affect the Thru signals, only signals directed to the subwoofer (however, it does affect the Output socket signals sent out to full-range speakers). A Level knob controls the input gain, and the Phase switch reverses the output phase to compensate for frequency cancellation between the subwoofer and satellite speakers. LEDs show operational status at a glance, including power, signal present and input overloads. Rounding out this stellar set of features is an RMS and Peak limiter, which provides the ultimate in protection for the RBOSOUND LF driver.

---

Which Speaker Do I Need?

As you have probably noticed, we make these subwoofers in two different woofer sizes. Which one is right for you? An 18" woofer has more surface area with which to move air than a 15". If you’re running sound for a jazz combo in a dinner club, a single B1500XP might be all you’ll need. But if you need to serve up pulse-pounding techno at a large, standing-room-only dance club, you might need a pair of B1800XPs to really ignite the dance floor.

---

Sound Value

The B1500XP PA subwoofer stands head and shoulders above the rest of the pack and delivers exceptional performance, even when pushed to the limit. Lightweight, but massively powerful with 3000 Watts of Class-D power, a Turbosound LF transducer and state-of-the-art onboard active stereo crossover, the B1500XP is ideal for any music application – at a price that is unheard of in this class.

Experience the Eurolive B1500XP at your local dealer or get yours online today, and find out why more and more professionals are turning to Behringer Eurolive active subwoofers for their superb performance and extraordinary value.

Amplifier
