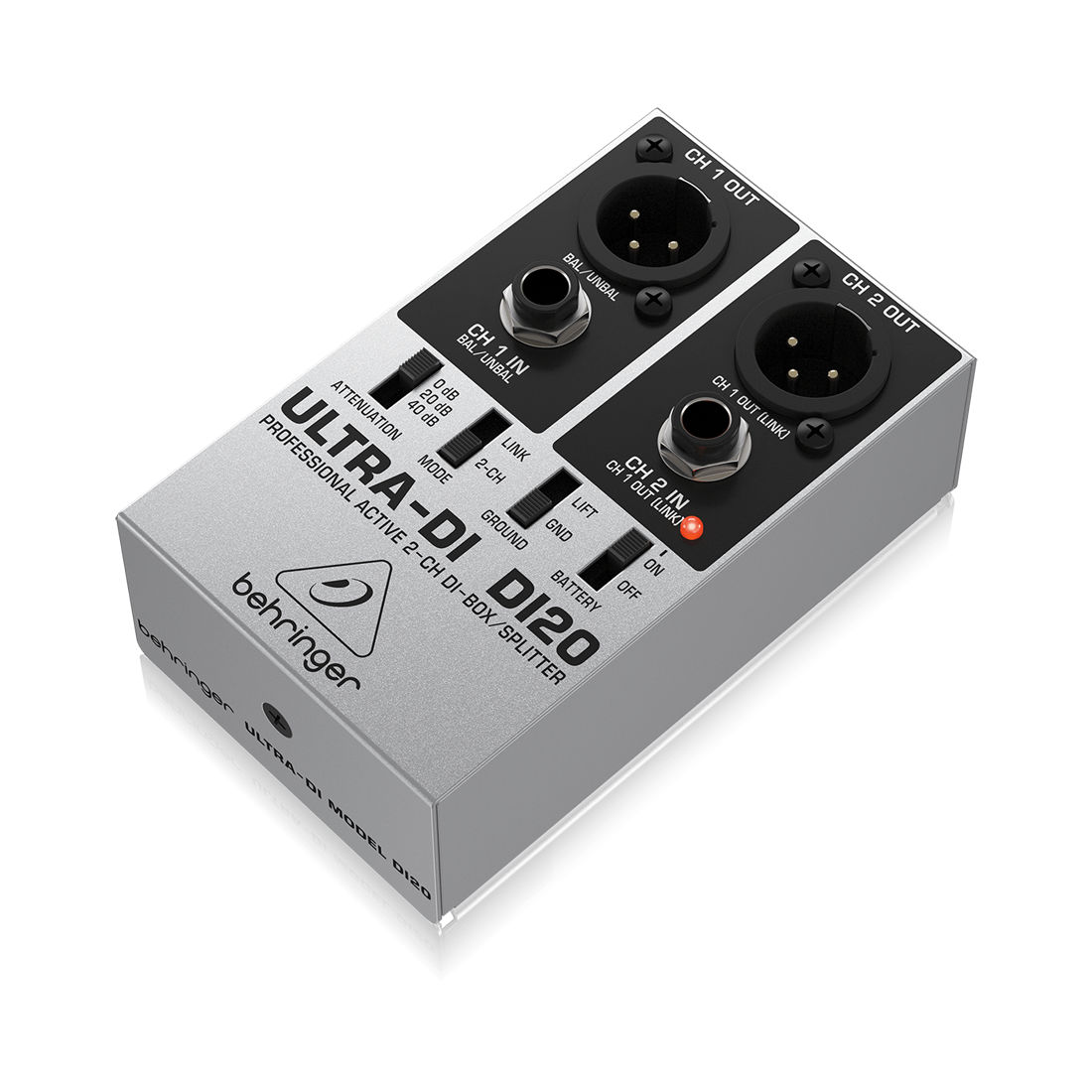

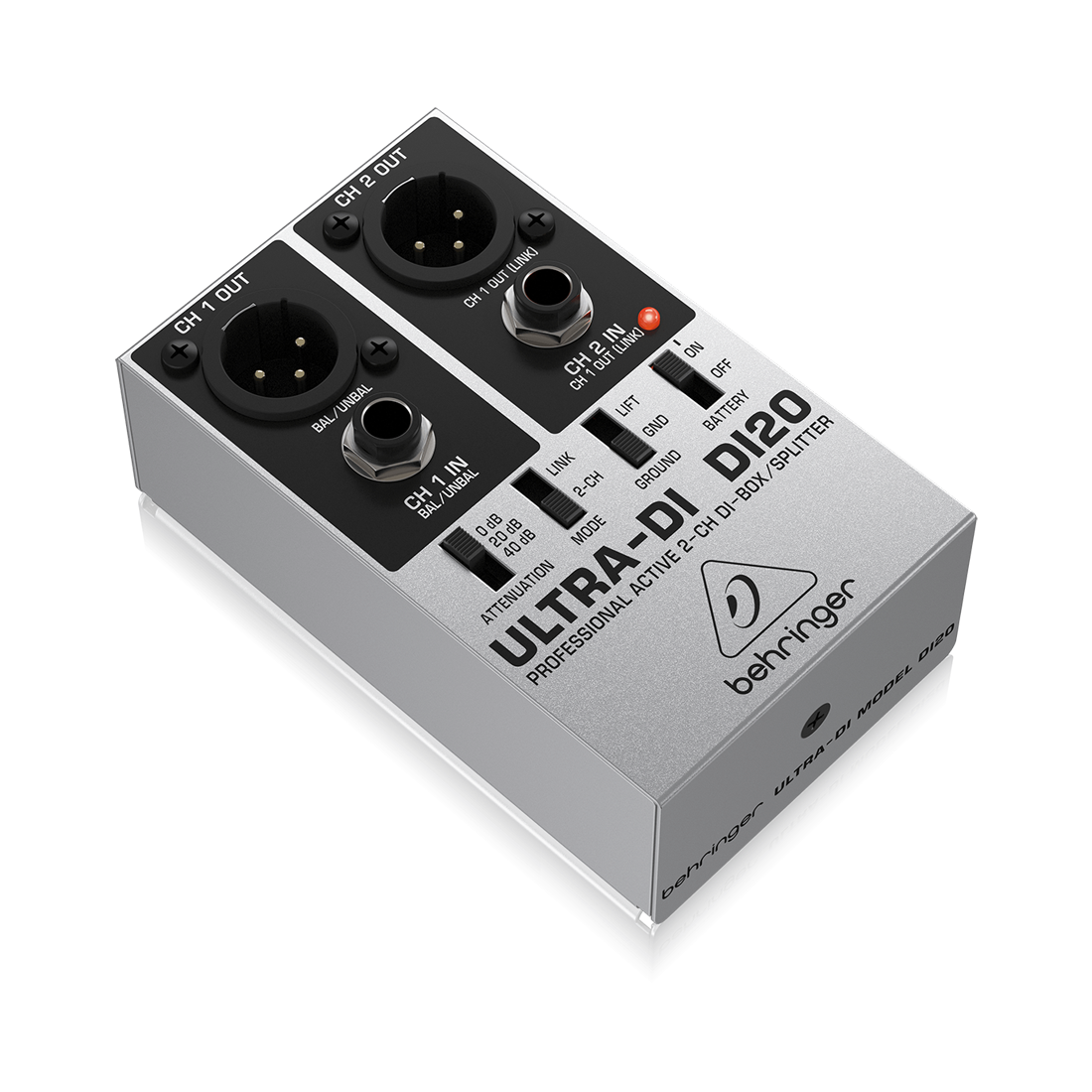

Behringer DI20 Ultra-DI Box
SKU: DI20
- Professional and multi-purpose direct injection box for stage and studio applications
- Provides impedance and signal matching for the direct connection of instruments to mixers and amplifiers
- Converts 2 independent unbalanced 1/4'' TRS line inputs into 2 balanced XLR outputs
- Additional Split mode (channel 1 assigns signal to both XLR outputs)
- Ultra-flat frequency response due to servo-balanced operation
- The internal battery automatically shuts off when phantom power is applied
- Allows direct connection to speaker outputs with up to 3,000 Watts
- Ground Lift switch eliminates typical ground loop problems
- Input 2 is usable as channel 1 Link output (additional to XLR output)
- ¼" TRS and gold-plated XLR connectors
- Ultra-rugged, road-suitable metal case
Mono, Stereo or Double the Amps
By flipping a switch, you can use the DI20 as a launching pad for two separate mono signals, a stereo signal – or a split-signal feeding two separate amps. The DI20 also features a superb ground-lift switch, and the 3-position input attenuator can accommodate input levels of up to +48 dBu. This handy built-in attenuator also allows you to connect directly to your amplifier’s speaker outputs, even amps rated as high as 3,000 Watts. You can power the DI20 with either a 9 V battery or your mixer’s phantom power supply (+18 to +48 V DC). The whole package is wrapped in an ultra compact, road-suitable and rugged metal housing.
Be Direct
If you’re a working musician who demands uncompromising functionality and durability, the ULTRADI DI20 will astound you – and so will its ultra-affordable price tag! See what the DI20 can do for your sound at your nearest Behringer dealer – or get yours online today.
