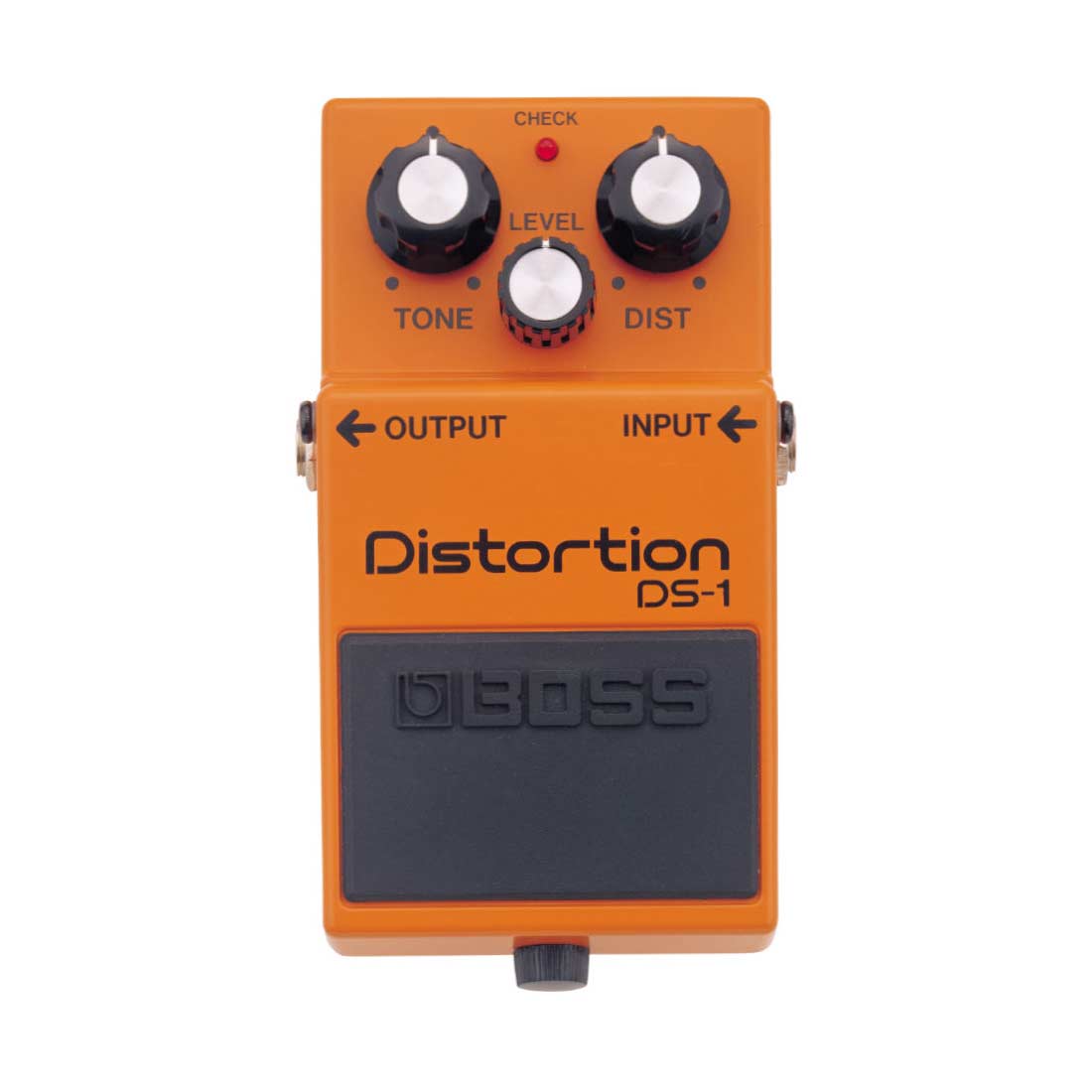

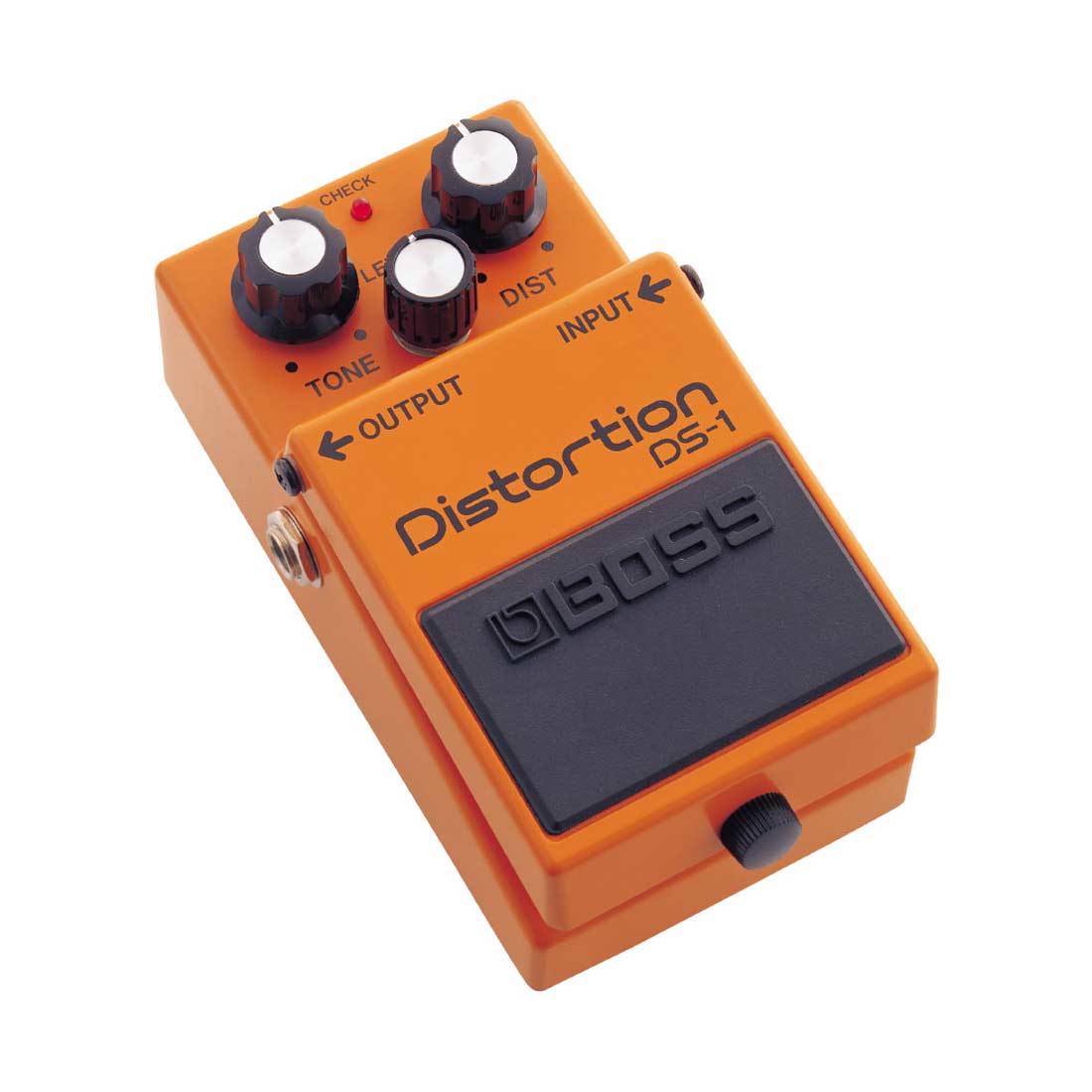

Boss DS1 Distortion Pedal

• Overview
• Features
• Specification

---

Genre-Defining Distortion

Before the DS-1, most distortion pedals produced harsh, buzzy tones and muddy sounds at high-gain settings. In 1978, BOSS engineers changed all that by developing a unique distortion circuit for the DS-1 that produces tight, hard-edged gain with rich harmonics while retaining the unique characteristics of different guitars and playing techniques. Hard rock, metal, and punk styles began to flourish in the ‘70s and ‘80s, and the DS-1’s tone had a defining influence on these genres. That trend has endured through multiple generations, and players around the world continue to seek out the classic DS-1 sound.

---

Powerful Tone Shaping

Unlike typical tone controls that only cut highs, the DS-1’s tone circuit features an innovative design that offers far more range. Turning the knob clockwise increases highs and decreases lows while going counter-clockwise has the opposite effect. This lets you dial in everything from tight, cutting rhythm sounds to smooth, fat lead voices. The tone control is particularly effective for maintaining low-end definition when using the DS-1 as a booster with vintage-style amps, which often sound muddy when driven with other distortion pedals.

• Legendary distortion used by guitarists everywhere since 1978
• Classic tones for all types of music
• Hard-edged attack remains clear even at maximum distortion settings, ideal for heavy rhythms and cutting solos
• Works great as a booster at low-distortion settings
• Unique tone control offers a wide range of sound shaping
• Doesn’t mask the unique sound characteristics of different guitars, pickups, and styles
• Turning down the guitar’s volume cleans up the tone without introducing muddiness
• BOSS five-year warrant

Nominal Input Level	-20 dBu
Input Impedance	1 M ohm
Nominal Output Level	-20 dBu
Output Impedance	1 k ohm
Recommended Load Impedance	10 k ohms or greater
Controls	Pedal switch TONE knob LEVEL knob DIST knob
Indicator	CHECK indicator (Used for indication of check battery)
Connectors	INPUT jack: 1/4-inch phone type OUTPUT jack: 1/4-inch phone type DC IN jack
Power Supply	Alkaline battery (9 V, 6LR61) or Carbon-zinc battery (9 V, 6F22) AC adaptor (PSA series: sold separately)
Current Draw	10 mA
Expected battery life under continuous use	Carbon: Approx. 50 hours Alkaline: Approx. 80 hours * These figures will vary depending on the actual conditions of use.
Accessories	Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information") Carbon-zinc battery (9 V, 6F22)
Option (sold separately)	AC adaptor (PSA series)

---

SIZE AND WEIGHT ( INCL. BATTERY )
