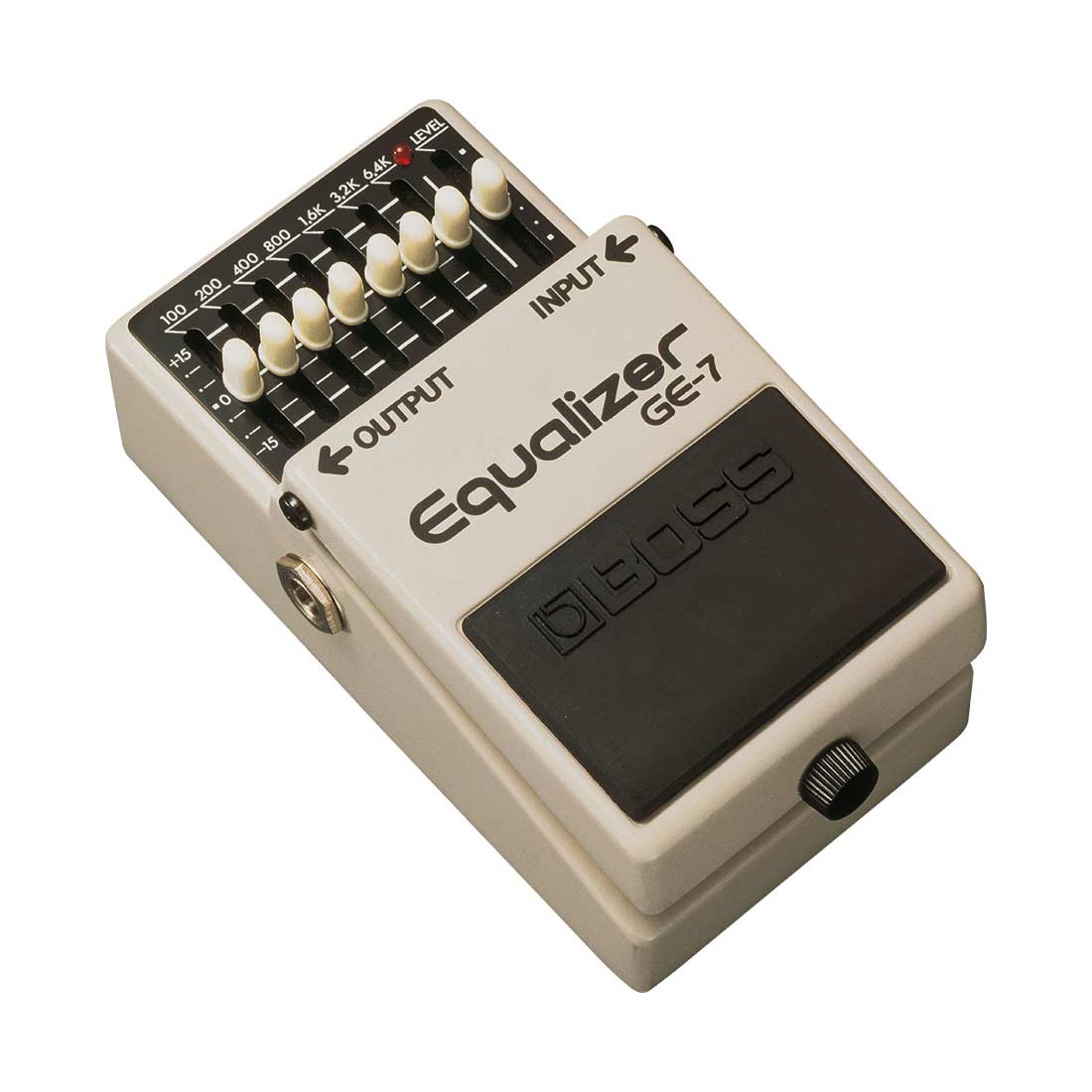

Boss GE7 Graphic Equalizer Pedal

• Features
• Specification

• Compact EQ pedal with 7 bands of adjustable EQ sliders
• Allows for boost/cut of up to +/- 15dB per band
• Perfect as a "boost" pedal for solos, creating an alternate sound, or for eliminating feedback
• BOSS five-year warranty

Nominal Input Level	-20 dBu
Input Impedance	1 M ohm
Nominal Output Level	-20 dBu
Output Impedance	1 k ohm
Recommended Load Impedance	10 k ohm or greater
Bypass	Buffered bypass
Controls	Level Control knob Equalizer Control knob 100, 200, 400, 800, 1.6 k, 3.2 k, 6.4 kHz Pedal switch
Indicator	CHECK indicator (Serves also as battery check indicator)
Connectors	INPUT jack: 1/4-inch phone type OUTPUT jack: 1/4-inch phone type DC IN jack
Power Supply	Carbon-zinc battery (9 V, 6F22) Alkaline battery (9 V, 6LR61) AC adaptor (PSA series: sold separately)
Current Draw	30 mA
Expected battery life under continuous use	Carbon: Approx. 9 hours Alkaline: Approx. 19.5 hours *These figures will vary depending on the actual conditions of use.
Accessories	Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information") Carbon-zinc battery (9 V, 6F22)
Options (sold separately)	AC adaptor: PSA series

---

SIZE AND WEIGHT
