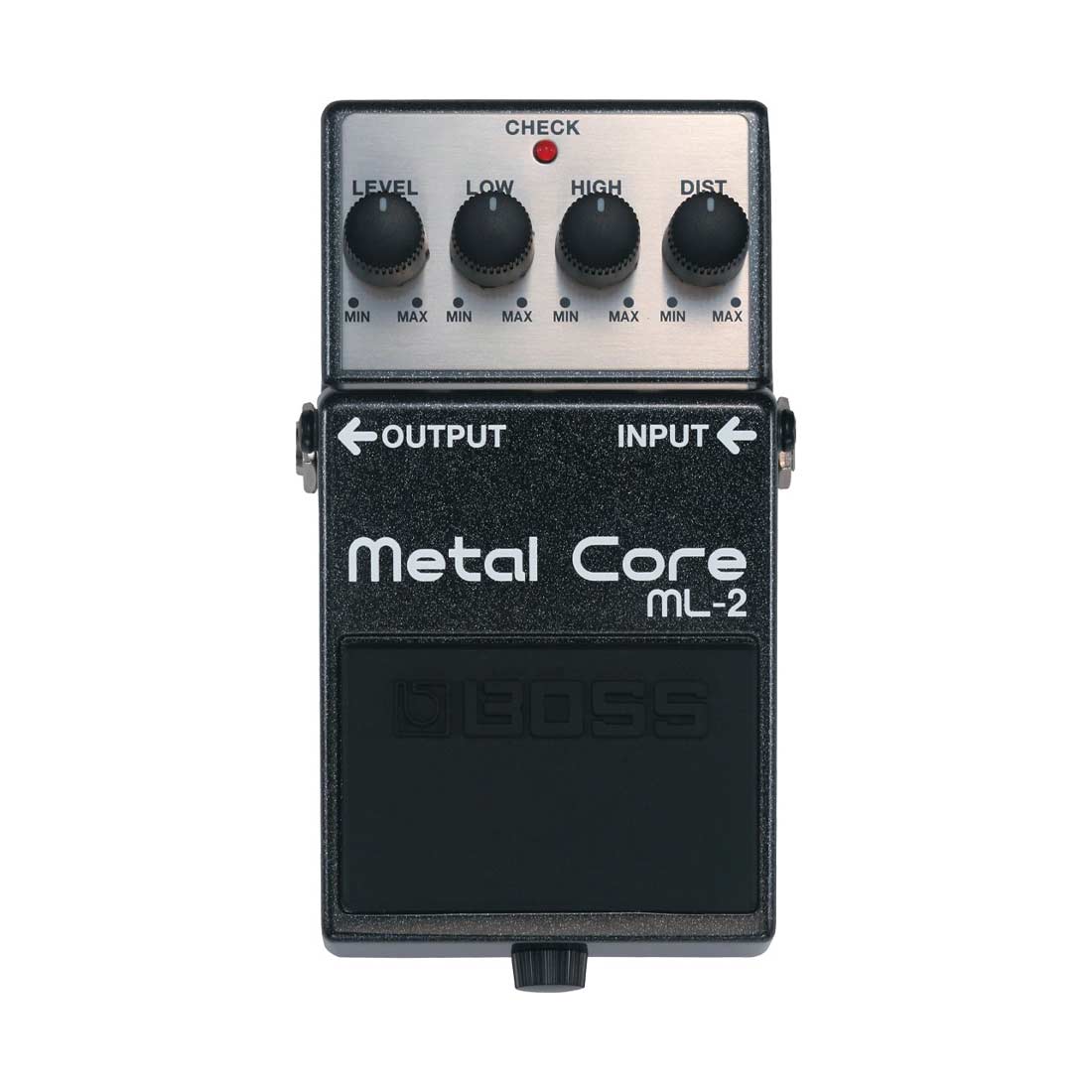

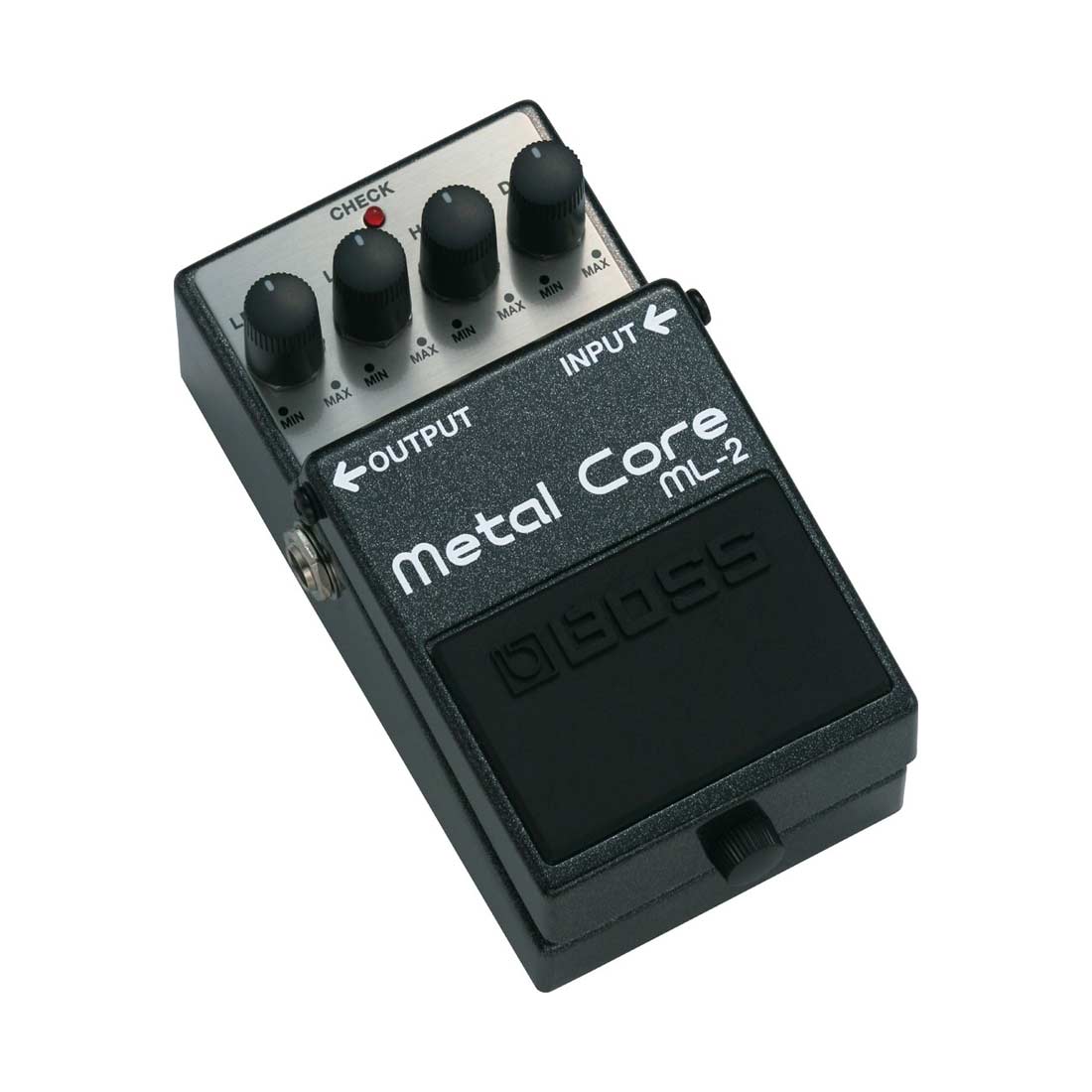

Boss ML2 Metal Core Pedal

• Overview
• Features
• Specification

• Ultra-heavy distortion with sharp-edged attack for crushing metal riffs
• LOW control for heavy, low frequency sound a la 7-string guitar or dropped tuning
• HIGH control for screaming, metallic tone
• Road-tough BOSS metal construction
• BOSS five-year warranty

Nominal Input Level	-20 dBu
Input Impedance	1 M ohm
Nominal Output Level	-20 dBu
Output Impedance	1 k ohm
Recommended Load Impedance	10 k ohms or greater
Bypass	Buffered bypass
Controls	Pedal switch LEVEL knob LOW knob HIGH knob DIST knob
Indicator	CHECK indicator (Serves also as battery check indicator)
Connectors	INPUT jack OUTPUT jack AC adaptor jack (DC 9 V)
Power Supply	Alkaline battery (9V, 6LR61) AC adaptor (PSA series: sold separately)
Current Draw	60 mA
Expected battery life under continuous use	Alkaline: Approx. 5.5 hours *These figures will vary depending on the actual conditions of use.
Accessories	Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information") Alkaline battery (9V, 6LR61)
Options (sold separately)	AC adaptor: PSA series

---

SIZE AND WEIGHT
