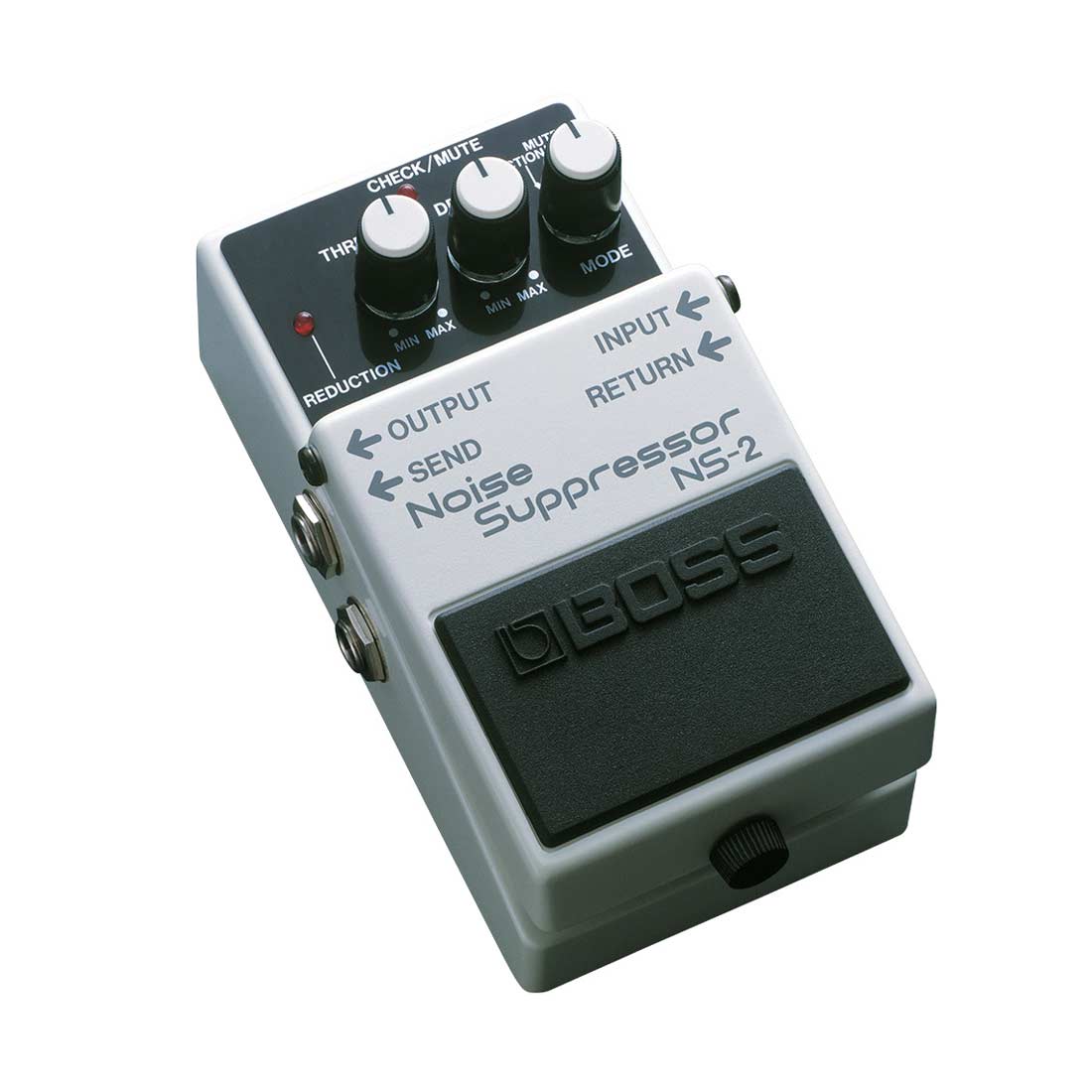

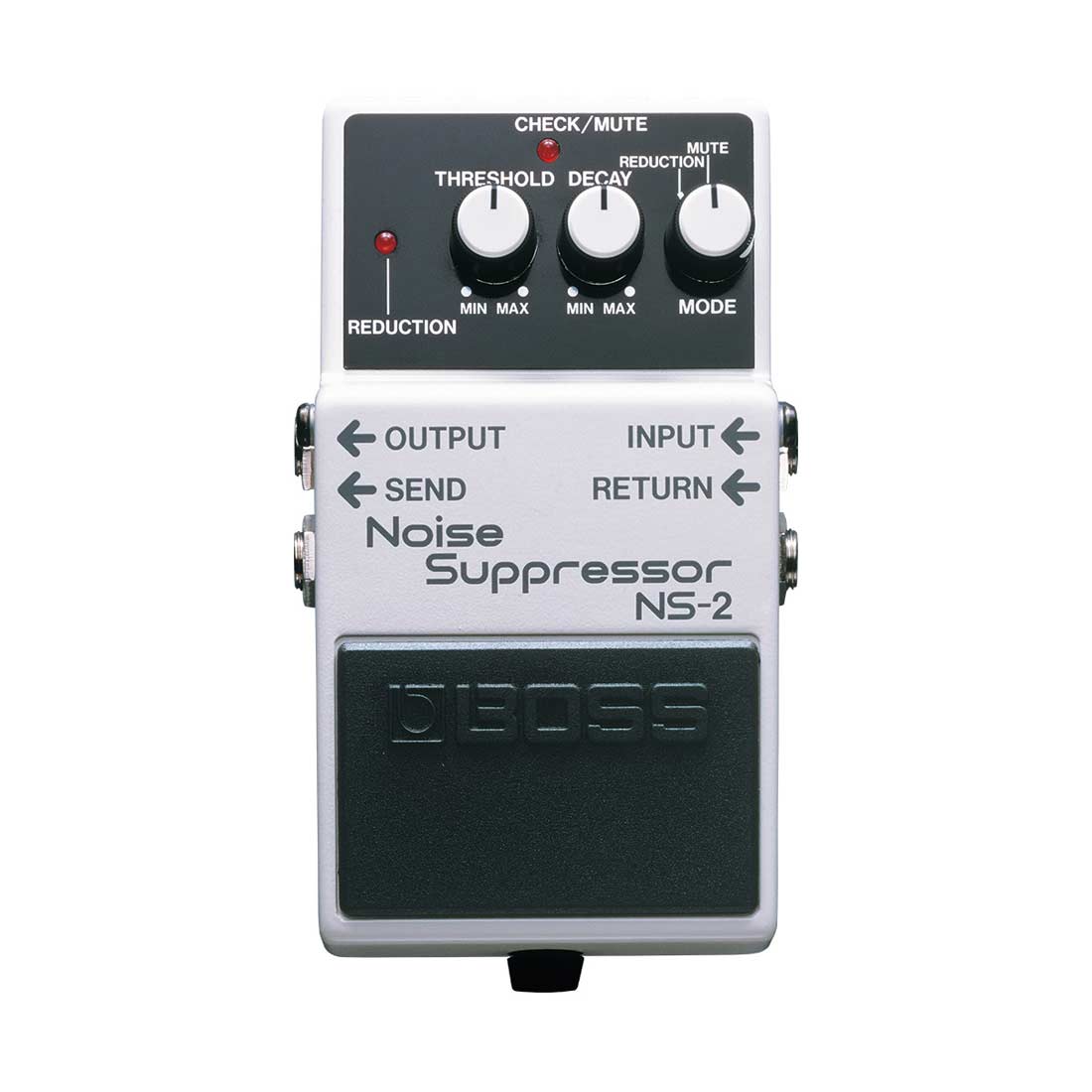

Boss NS2 Noise Suppressor Pedal

• Features
• Specification

• Compact noise suppression pedal for eliminating noise and hum in guitar and bass effects and amplifier setups
• Unique noise detection circuit preserves the natural attack and envelope of an instrument's sound
• Threshold and Decay knobs allow for shaping the elimination/suppression as desired
• BOSS 5-year warranty

Nominal Input Level	-20 dBu
Input Impedance	1 M ohm
Nominal Output Level	-20 dBu
Output Impedance	1 k ohm
Recommended Load Impedance	10 k ohms or greater
Bypass	Buffered bypass
Controls	MODE selector switch DECAY knob THRESHOLD knob Pedal switch
Indicator	CHECK/MUTE indicator (Used for indication of check battery) REDUCTION indicator
Connectors	INPUT jack: 1/4-inch phone type OUTPUT jack: 1/4-inch phone type SEND jack: 1/4-inch phone type RETURN jack: 1/4-inch phone type DC IN jack 9V DC OUT jack
Power Supply	Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61) AC adaptor (PSA series: sold separately)
Current Draw	25 mA
Expected battery life under continuous use	Carbon: Approx. 11 hours Alkaline: Approx. 24.5 hours *These figures will vary depending on the actual conditions of use.
Accessories	Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information") Carbon-zinc battery (9 V, 6F22)
Options (sold separately)	AC adaptor: PSA series Parallel DC Cord: PCS-20A

---

SIZE AND WEIGHT
