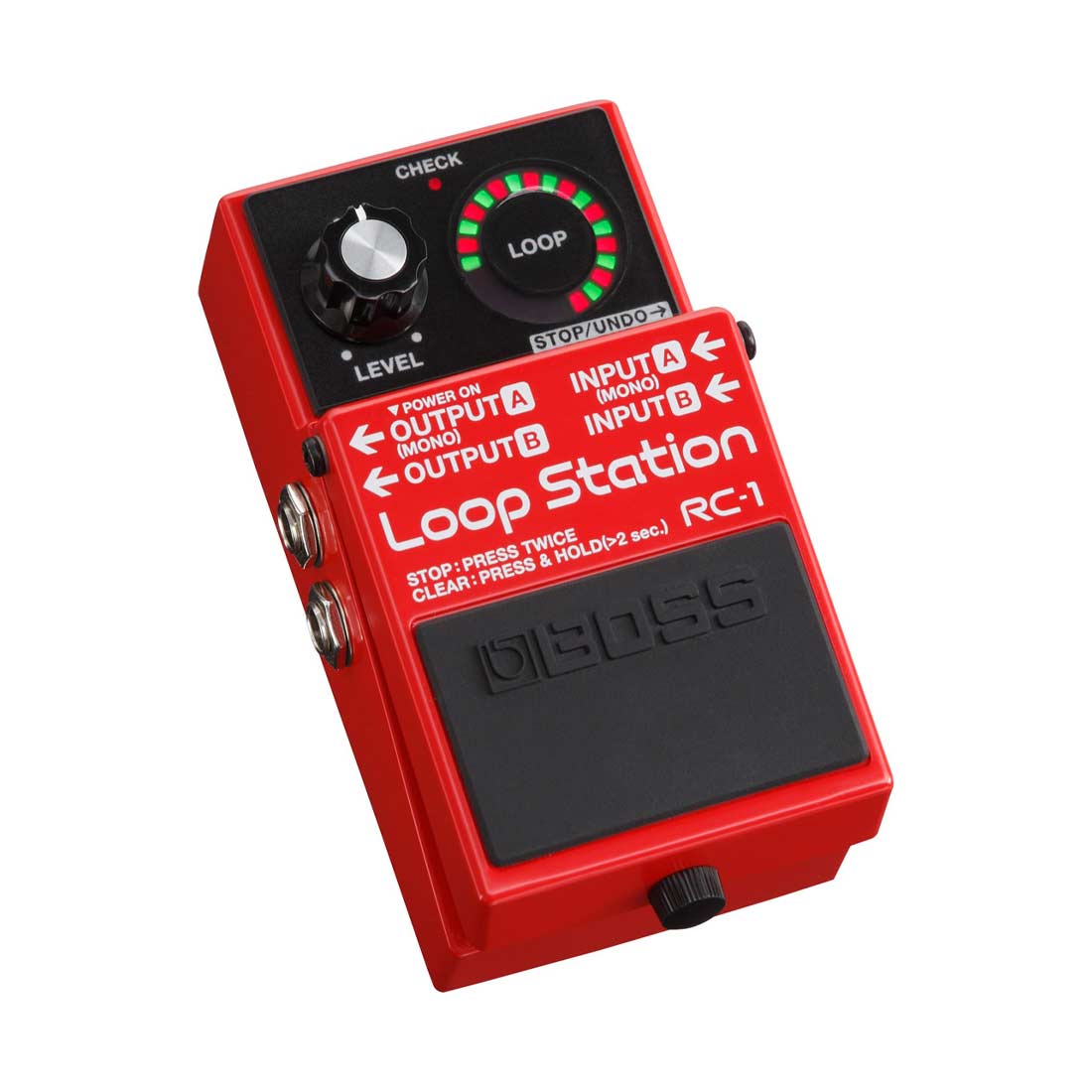

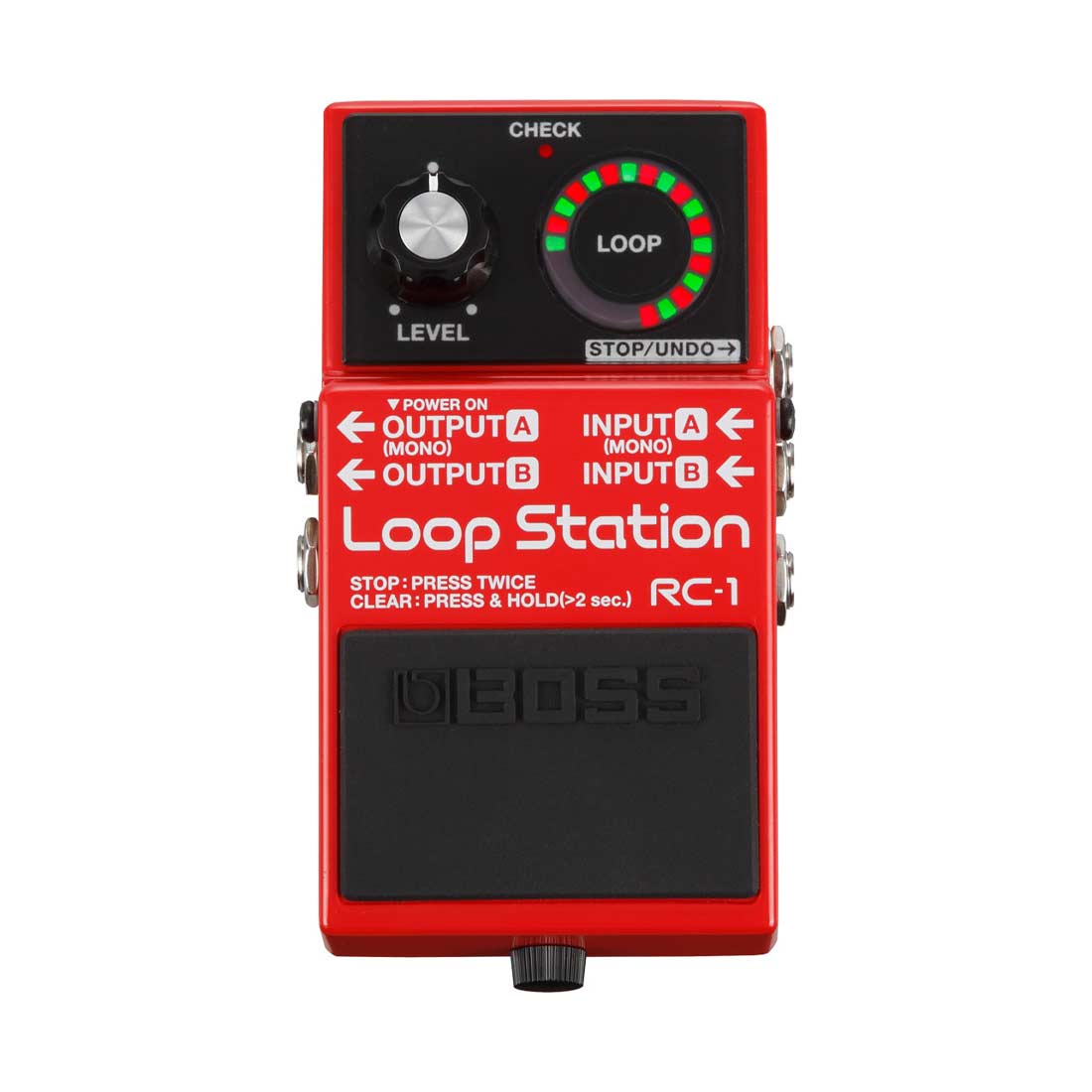

Boss RC1 Loop Station Pedal

• Overview
• Features
• Specification

• Straightforward and easy to operate
• The newly designed loop indicator displays the current loop mode (Rec/Overdub/Play)
• Runs on a single 9-volt alkaline battery (approximately 4.5 hours of battery life)
• Can be used with an optional AC adaptor (PSA series: sold separately)
• 12 minutes of stereo recording time
• Stereo inputs and outputs
• Flexible external footswitch options
• The recorded phrase is retained in memory even after the RC-1 is turned off
• BOSS five-year warranty

Nominal Input Level	-20 dBu
Input Impedance	1 M ohm
Nominal Output Level	-20 dBu
Output Impedance	1 k ohm
Recommended Load Impedance	10 k ohms or greater
Maximum Recording Time	Approximately 12 minutes
Controls	Pedal switch LEVEL knob
Indicators	CHECK indicator LOOP indicator
Connectors	INPUT A (MONO) jack: 1/4-inch phone type INPUT B jack: 1/4-inch phone type OUTPUT A (MONO) jack: 1/4-inch phone type OUTPUT B jack: 1/4-inch phone type STOP/UNDO jack: 1/4-inch TRS phone type DC IN jack
Power Supply	Alkaline battery (9 V, 6LR61) AC adaptor (PSA series: sold separately)
Current Draw	95 mA
Expected battery life under continuous use (These figures will vary depending on the actual conditions of use.)	Alkaline: Approx. 3 hours
Accessories	Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information") Alkaline battery (9 V, 6LR61)
Options (sold separately)	AC adaptor: PSA series Footswitch: FS-5U, FS-6, FS-7

---

SIZE AND WEIGHT
