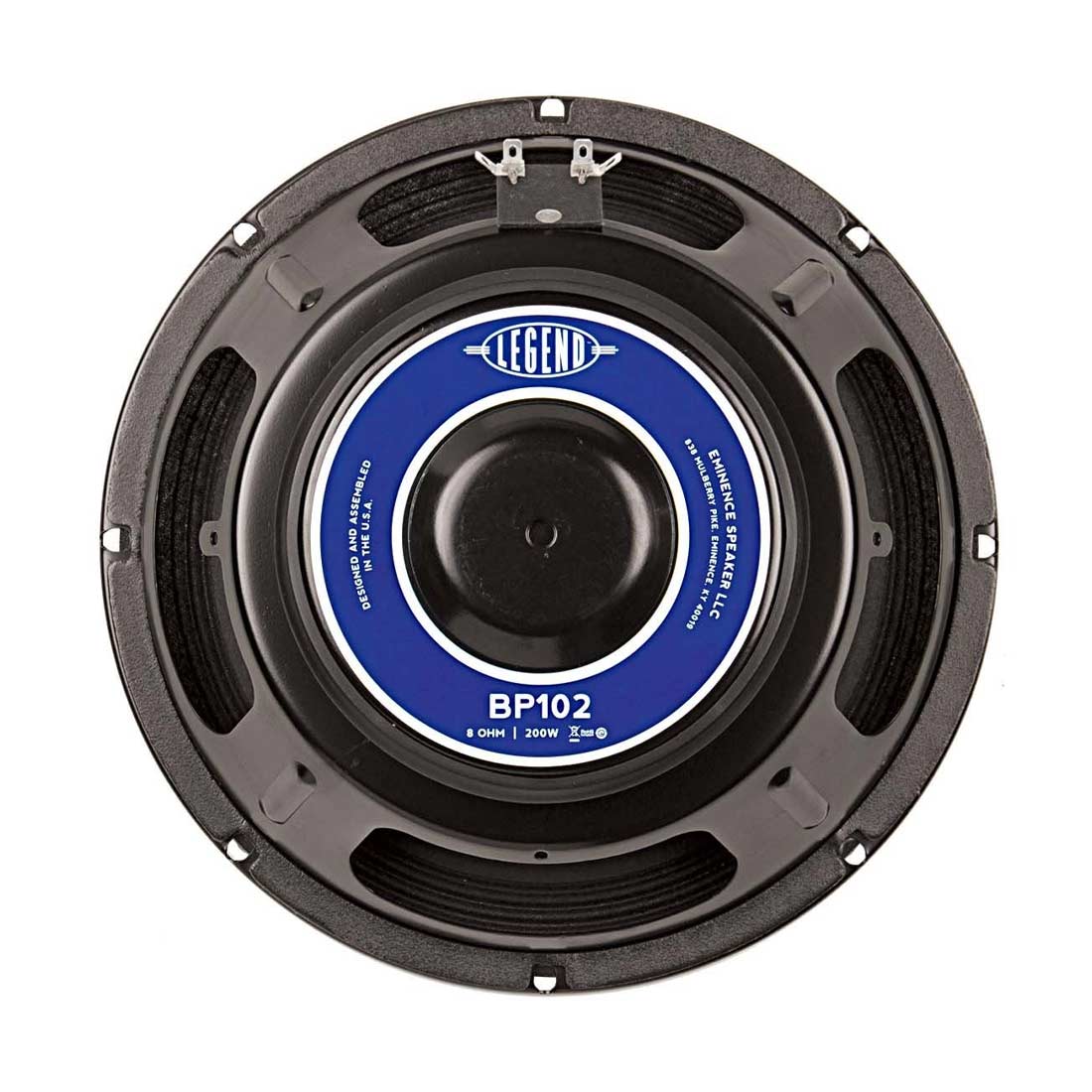

Eminence LEGENDBP102 10in Bass Guitar Speaker 200w 8 Ohm
Regular price
$279.99
Unit price
per
Ships From Warehouse (May be subject to backorder)
SKU: LEGENDBP102
Recommended for professional bass guitar applications in a sealed or vented enclosure. Works well in single or multi-driver designs. This driver is at home in small sealed enclosures and works well in Pro Audio and Home Hi-Fi applications.
| SPECIFICATION | |
| Nominal Basket Diameter | 10", 254 mm |
| Nominal Impedance* | 8 Ω |
| Power Rating* | |
| Program Power | 400 W |
| Watts | 200 W |
| Resonance | 35 Hz |
| Usable Frequency Range | 40 Hz - 2 kHz |
| Sensitivity* | 91.8 dB |
| Magnet Weight | 38 oz. |
| Gap Height | 0.312", 7.9 mm |
| Voice Coil Diameter | 2", 51 mm |
| THIELE & SMALL PARAMETERS | |
| Resonant Frequency (fs) | 35 Hz |
| DC Resistance (Re) | 5.59 Ω |
| Coil Inductance (Le) | 0.83m H |
| Mechanical Q (Qms) | 5.36 |
| Electromagnetic Q (Qes) | 0.47 |
| Total Q (Qts) | 0.43 |
| Compliance Equivalent Volume (Vas) | 91.2 liters / 3.22 cu.ft. |
| Peak Diaphragm Displacement Volume (Vd) | 207.4 cc |
| Mechanical Compliance of Suspension (Cms) | 0.54 mm/N |
| BL Product (BL) | 10 T-M |
| Diaphragm Mass Inc. Airload (MMs) | 38 grams |
| Efficiency Bandwidth Product (EBP) | 75 |
| Maximum Linear Excursion (Xmax) | 6.2 mm |
| Surface Area of Cone (Sd) | 334.5 cm2 |
| Maximum Mechanical Limit (Xlim) | 10 mm |
| MOUNTING INFORMATION | |
| Recommended Enclosure Volume | |
| Sealed | Acceptable |
| Vented | Acceptable |
| Driver Volume Displaced | 0.041 cu.ft. / 1.17 liters |
| Overall Diameter | 10.08", 256 mm |
| Baffle Hole Diameter | 9.18", 233.2 mm |
| Front Sealing Gasket | Yes |
| Rear Sealing Gasket | Yes |
| Mounting Holes Diameter | 0.25", 6.4mm |
| Mounting Holes B.C.D. | 9.66", 245.4mm |
| Depth | 4.25", 108 mm |
| Net Weight | 8.9 lbs, 4.04 kg |
| Shipping Weight | 9.1 lbs, 4.13 kgs |
| MATERIALS OF CONSTRUCTION | |
| Coil Construction | Copper voice coil |
| Coil Former | Polyimide former |
| Magnet Composition | Ferrite magnet |
| Core Details | Non-vented core |
| Â | Â |
| Basket Materials | Pressed steel basket |
| Cone Composition | Paper cone |
| Cone Edge Composition | Cloth cone edge |
| Dust Cap Composition | Zurette dust cap |
