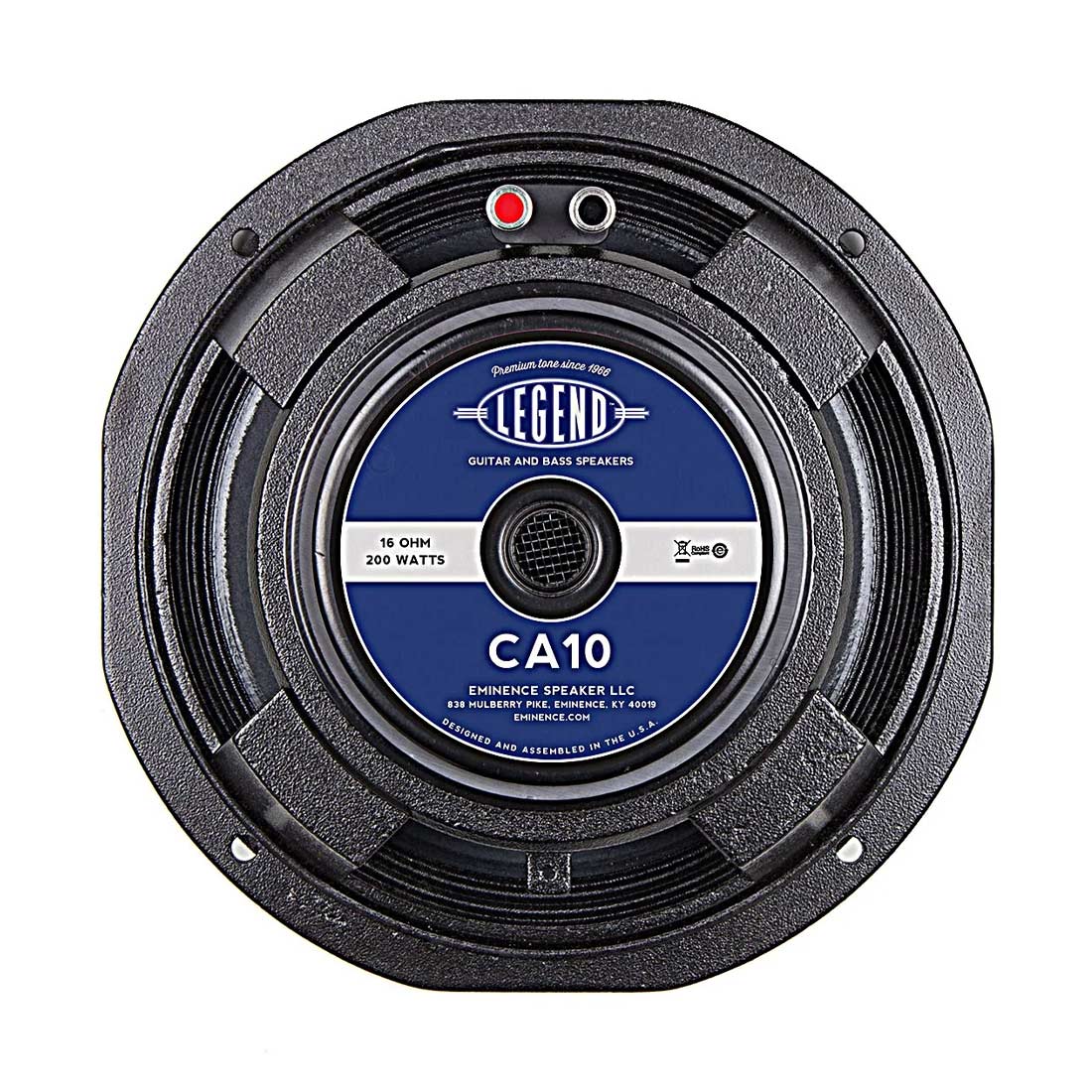

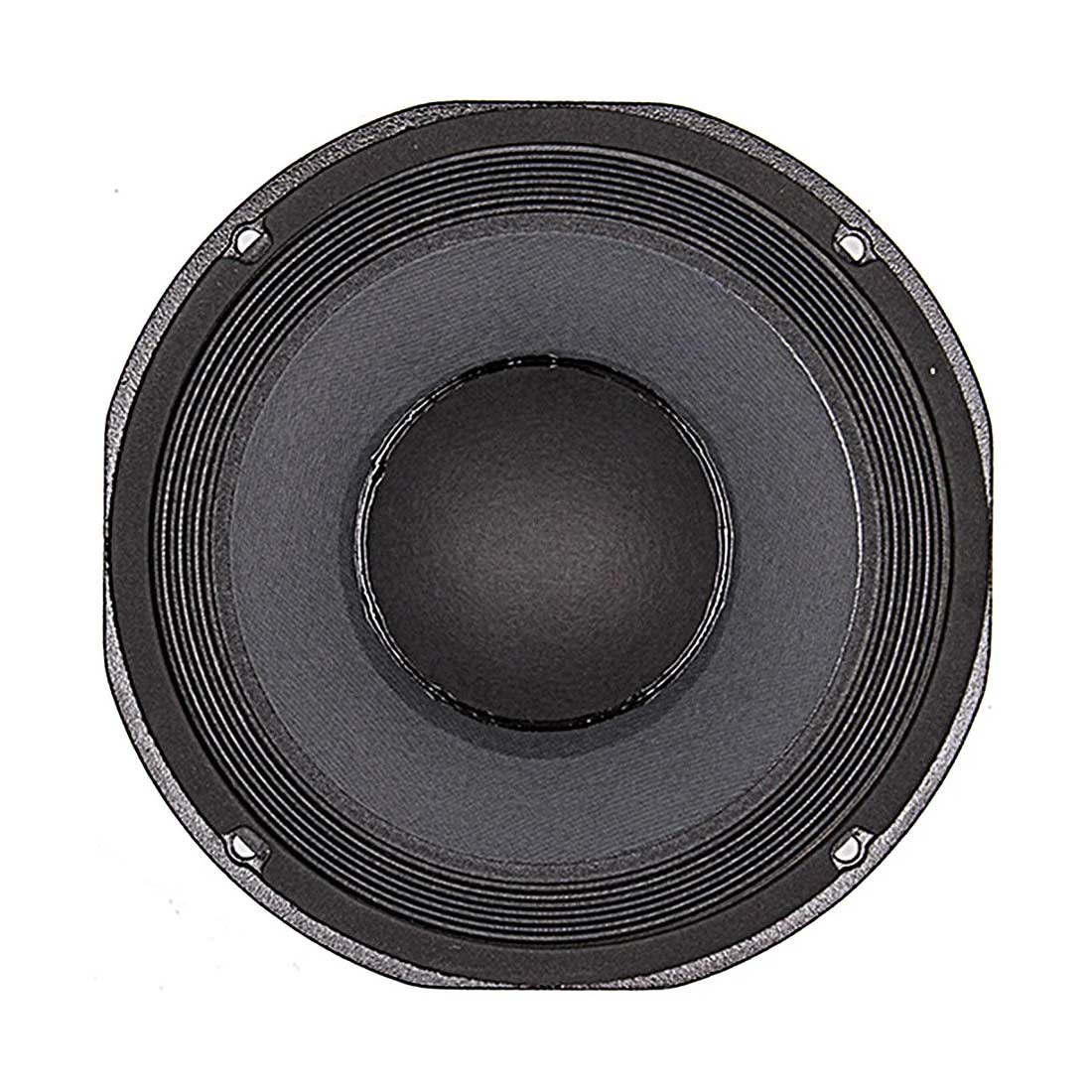

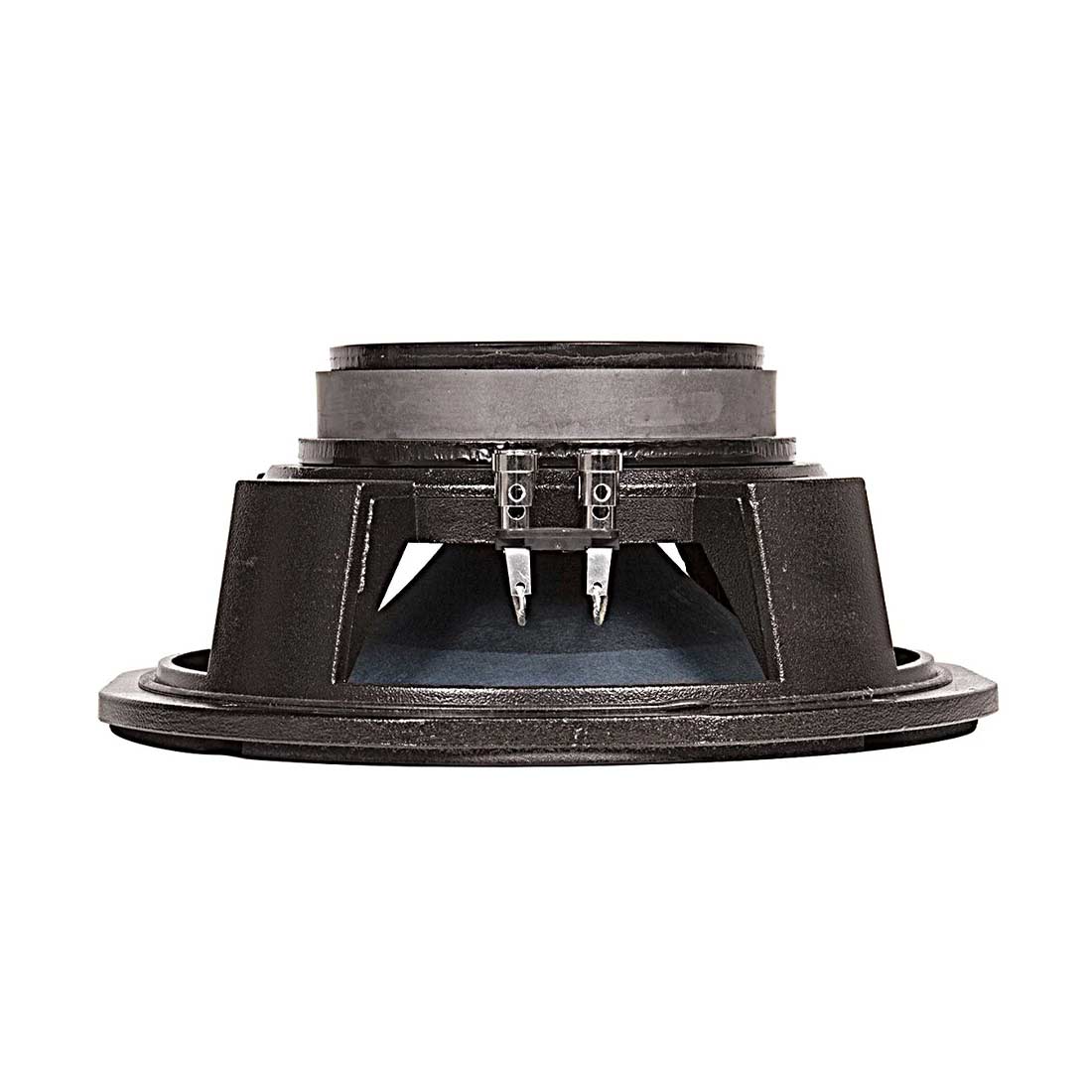

Eminence LEGENDCA10-8 10in Bass Guitar Speaker 200w 8 Ohm
Regular price
$399.99
Unit price
per
Ships From Warehouse (May be subject to backorder)
SKU: LEGENDCA10-8
Made famous as an OEM model in many popular bass guitar cabinet brands, this highly sought after design features a truncated cast frame chassis for tight fitting in your 2x, 4x and 8x10 cabinet. Loud and clear bass guitar tone with legendary growl.
| SPECIFICATION | |
| Nominal Basket Diameter | 10", 254 mm |
| Nominal Impedance* | 8 Ω |
| Power Rating* | |
| Program Power | 400 W |
| Watts | 200 W |
| Resonance | 53 Hz |
| Usable Frequency Range | 50 Hz - 3 kHz |
| Sensitivity* | 96.3 dB |
| Magnet Weight | 38 oz. |
| Gap Height | 0.312", 7.9 mm |
| Voice Coil Diameter | 2", 51 mm |
| THIELE & SMALL PARAMETERS | |
| Resonant Frequency (fs) | 53 Hz |
| DC Resistance (Re) | 4.83 Ω |
| Coil Inductance (Le) | 0.51m H |
| Mechanical Q (Qms) | 6.53 |
| Electromagnetic Q (Qes) | 0.49 |
| Total Q (Qts) | 0.45 |
| Compliance Equivalent Volume (Vas) | 51.05 liters / 1.8 cu.ft. |
| Peak Diaphragm Displacement Volume (Vd) | 105.7 cc |
| Mechanical Compliance of Suspension (Cms) | 0.3 mm/N |
| BL Product (BL) | 10.07 T-M |
| Diaphragm Mass Inc. Airload (MMs) | 31 grams |
| Efficiency Bandwidth Product (EBP) | 109 |
| Maximum Linear Excursion (Xmax) | 3.02 mm |
| Surface Area of Cone (Sd) | 350.1 cm2 |
| Maximum Mechanical Limit (Xlim) | 7 mm |
| MOUNTING INFORMATION | |
| Recommended Enclosure Volume | |
| Sealed | N/a |
| Vented | Acceptable |
| Driver Volume Displaced | 0.043 cu.ft. / 1.22 liters |
| Overall Diameter | 10.5", 266.7 mm |
| Baffle Hole Diameter | 9.01", 228.9 mm |
| Front Sealing Gasket | Yes |
| Rear Sealing Gasket | Yes |
| Mounting Holes Diameter | 0", 0mm |
| Mounting Holes B.C.D. | 0", 0mm |
| Depth | 0", 0 mm |
| Net Weight | 8.8 lbs, 3.99 kg |
| Shipping Weight | 9.7 lbs, 4.4 kgs |
| MATERIALS OF CONSTRUCTION | |
| Coil Construction | Copper voice coil |
| Coil Former | Kapton former |
| Magnet Composition | Ferrite magnet |
| Core Details | Vented and extended core |
| Basket Materials | Die-cast aluminum basket |
| Cone Composition | Paper cone |
| Cone Edge Composition | Cloth cone edge |
| Dust Cap Composition | Treated paper dust cap |
