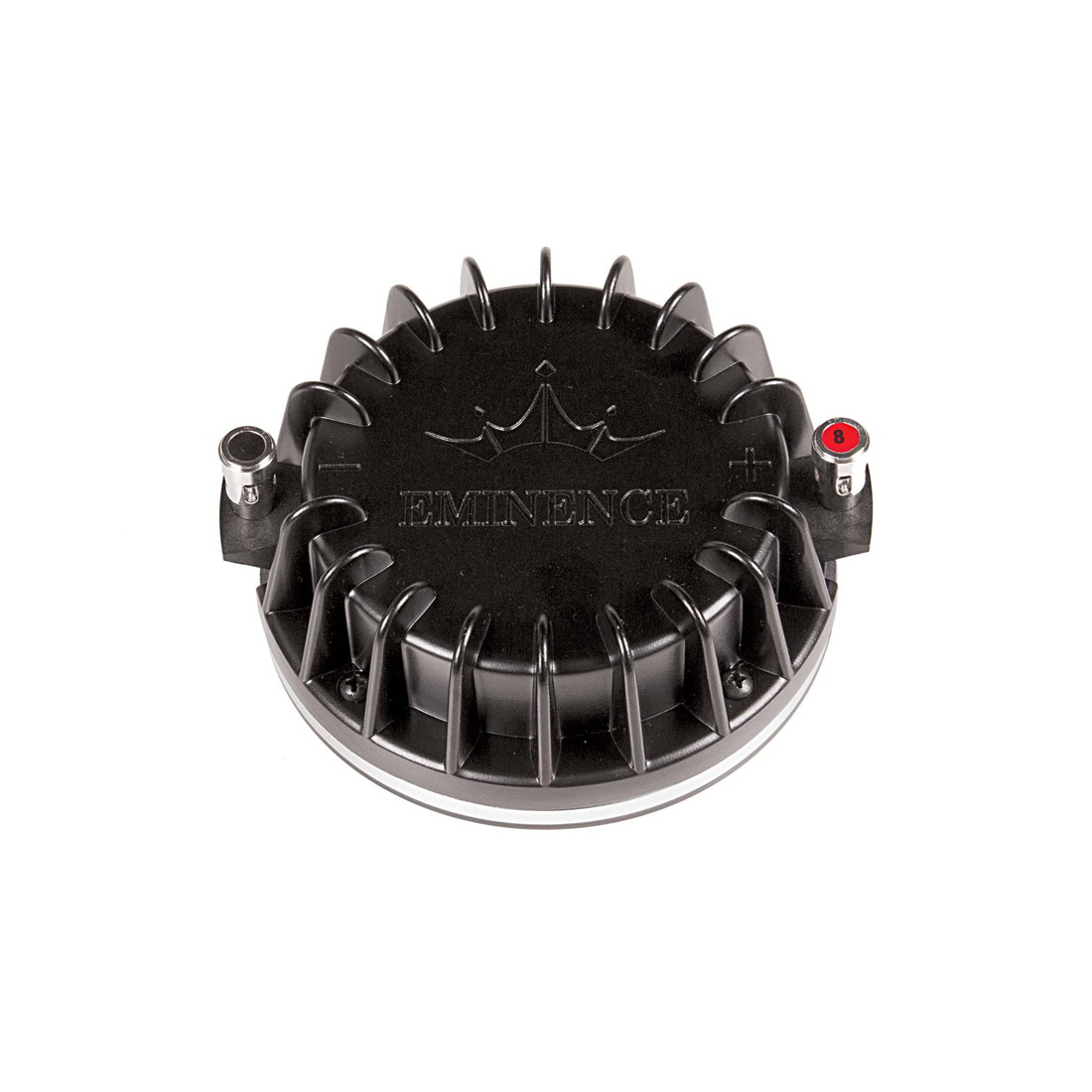

Eminence N314T-8 Driver

Regular price $545.00
In Stock

SKU: N314T-8

The 1.4 in. exit N314T-8 sets a new standard in compression drivers from Eminence. Featuring D3 technology (Damped Diametric Drive), a 3 in. voice coil, and lightweight neodymium ring magnet with copper shorting ring, the N314T-8 offers an ultra-clean sound and low crossover point.

SPECIFICATION
Throat Size 1.4", 35.6mm
Nominal Impedance* 8Ω
Minimum Impedance 6.7 ohm @ 3.7 kHz
Power Rating** 100 W (AES)
Resonance 0.55kHz
Usable Frequency Range 800Hz-20kHz
Recommended Crossover 800 Hz / 12 dBkHz
Sensitivity*** 110.9
Magnet Material Neodymium
Magnet Weight 11oz, 0.31kg
Voice Coil Diameter 3" / 76.2mm
Voice Coil Former Polyimide
Diaphragm Material Titanium
DC Resistance (Re) 4.8Ω
MOUNTING INFORMATION
Overall Diameter 5.72", 145.3mm
Driver Volume Displaced 0.02 cu.ft., 0.66 liters
Depth 2.53", 64.3mm
Weight 4.8 lbs, 2.2 kg
Mounting Thread N/A
Mounting Holes Diameter 4X 1/4-20
Mounting Holes B.C.D. 4 in. 101.6 mm
