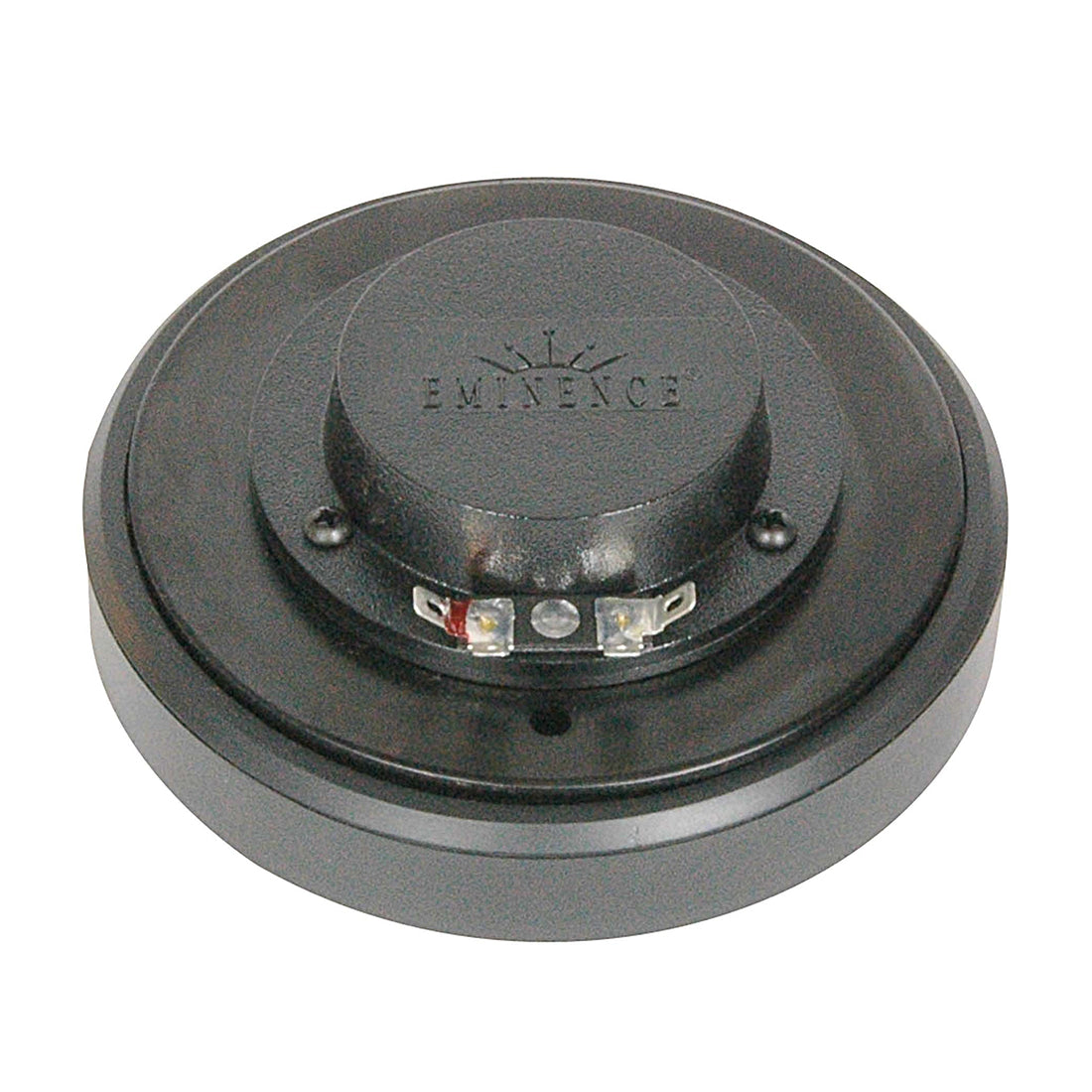

Eminence PSD2002-16 Driver 1in 80w 16 Ohm Bolt On
Regular price
$245.00
Unit price
per
In Stock
SKU: PSD2002-16
1" Throat Size HF Device - Type II 80 W (AES)
| SPECIFICATION | |
| Throat Size | 1", 25.4mm |
| Nominal Impedance* | 16Ω |
| Minimum Impedance | 14.8 ohm @ 3.3 kHz |
| Power Rating** | 80 W (AES) |
| Resonance | 0.58kHz |
| Usable Frequency Range | 1200Hz-20kHz |
| Recommended Crossover | 1.2 kHz / 18 dBkHz |
| Sensitivity*** | 105.8 |
| Magnet Material | Ferrite |
| Magnet Weight | 34oz, 0.96kg |
| Voice Coil Diameter | 2" / 50.8mm |
| Voice Coil Former | Polyimide |
| Diaphragm Material | Titanium |
| DC Resistance (Re) | 11.9Ω |
| MOUNTING INFORMATION | |
| Overall Diameter | 5.25", 133.4mm |
| Driver Volume Displaced | 0.01 cu.ft., 0.5 liters |
| Depth | 2.2", 55.9mm |
| Weight | 4.7 lbs, 2.1 kg |
| Mounting Thread | N/A |
| Mounting Holes Diameter | 2X 1/4-20 or 3x M6 |
| Mounting Holes B.C.D. | 3 in. 76.2 mm or 2.25 in. 57 |
