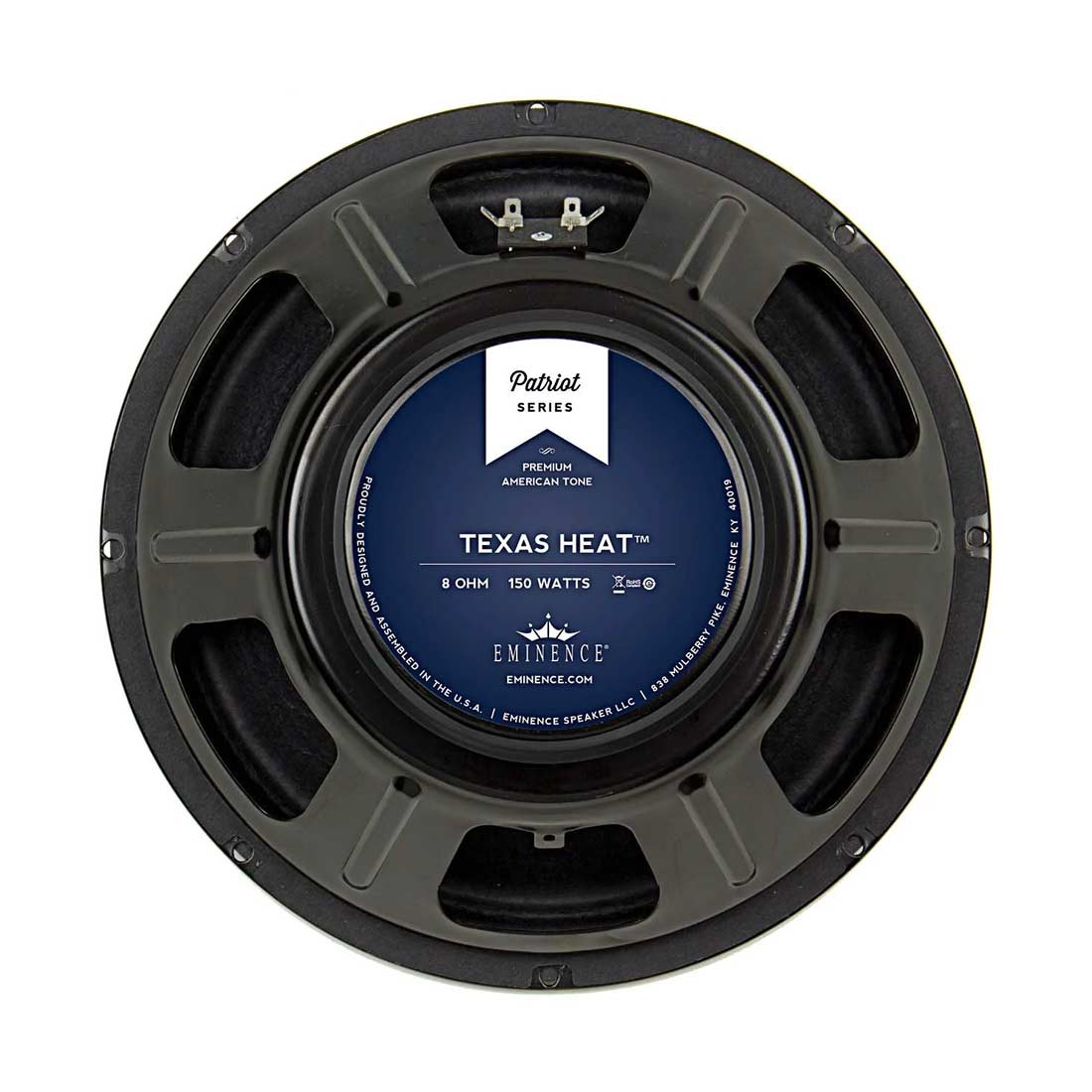

Eminence TEXASHEAT 12in Guitar Speaker 150w 8 Ohm
Regular price
$315.00
Unit price
per
Ships From Warehouse (May be subject to backorder)
SKU: TEXASHEAT
The Eminence Texas Heat is the All-American guitar speaker that’s packin’ heat, Texas style. It delivers a nice warm, fat tone with top end bite and clarity to cut through a mix while maintaining a rich, bluesy tone. Very touch-sensitive with a hint of British voicing.
| SPECIFICATION | |
| Nominal Basket Diameter | 12", 305 mm |
| Nominal Impedance* | 8 Ω |
| Power Rating* | |
| Program Power | N/A |
| Watts | 150 W |
| Resonance | 79 Hz |
| Usable Frequency Range | 70 Hz - 4.7 kHz |
| Sensitivity* | 99.4 dB |
| Magnet Weight | 38 oz. |
| Gap Height | 0.312", 7.9 mm |
| Voice Coil Diameter | 2", 51 mm |
| THIELE & SMALL PARAMETERS | |
| Resonant Frequency (fs) | 79 Hz |
| DC Resistance (Re) | 7.3 Ω |
| Coil Inductance (Le) | 0.54m H |
| Mechanical Q (Qms) | 13.88 |
| Electromagnetic Q (Qes) | 0.68 |
| Total Q (Qts) | 0.65 |
| Compliance Equivalent Volume (Vas) | 50.9 liters / 1.8 cu.ft. |
| Peak Diaphragm Displacement Volume (Vd) | 41.6 cc |
| Mechanical Compliance of Suspension (Cms) | 0.13 mm/N |
| BL Product (BL) | 12.8 T-M |
| Diaphragm Mass Inc. Airload (MMs) | 31 grams |
| Efficiency Bandwidth Product (EBP) | 116 |
| Maximum Linear Excursion (Xmax) | 0.8 mm |
| Surface Area of Cone (Sd) | 519.5 cm2 |
| Maximum Mechanical Limit (Xlim) | N/A |
| MOUNTING INFORMATION | |
| Recommended Enclosure Volume | |
| Sealed | Acceptable |
| Vented | Acceptable |
| Driver Volume Displaced | 0.071 cu.ft. / 2 liters |
| Overall Diameter | 12.03", 305.6 mm |
| Baffle Hole Diameter | 11.07", 281.2 mm |
| Front Sealing Gasket | Yes |
| Rear Sealing Gasket | Yes |
| Mounting Holes Diameter | 0.25", 6.4mm |
| Mounting Holes B.C.D. | 11.59", 294.4mm |
| Depth | 5.1", 129.5 mm |
| Net Weight | 8.3 lbs, 3.76 kg |
| Shipping Weight | 10 lbs, 4.54 kgs |
| MATERIALS OF CONSTRUCTION | |
| Coil Construction | Copper voice coil |
| Coil Former | Polyimide former |
| Magnet Composition | Ferrite magnet |
| Core Details | Non-vented core |
| Basket Materials | Pressed steel basket |
| Cone Composition | Paper cone |
| Cone Edge Composition | Paper cone edge |
| Dust Cap Composition | Zurette dust cap |
| Series | Patriots |
| Model | Texas Heat |
| Application | 12" Open or Closed Back |
| Configuration | 1, 2, or 4 X 12" |
| Low End Response | Aggressive |
| Low End Shape | Fat/Chunky |
| Mid-Range Response | Aggressive |
| Mid-Range Shape | Crisp |
| High-End Response | Moderate |
| Volume/Power | Louder |
| Overall Coloration* | Nice warm, fat tone with a little top end bite and clarity. Very touch sensitive with a hint of British flavor. |
| Break-up Modes | Medium |
| Power Range | Up to 150 watts |
| Instrument* | Lead/Rhythm Guitar |
| Genre of Music* | American Rock, Blues, and Southern Rock |
